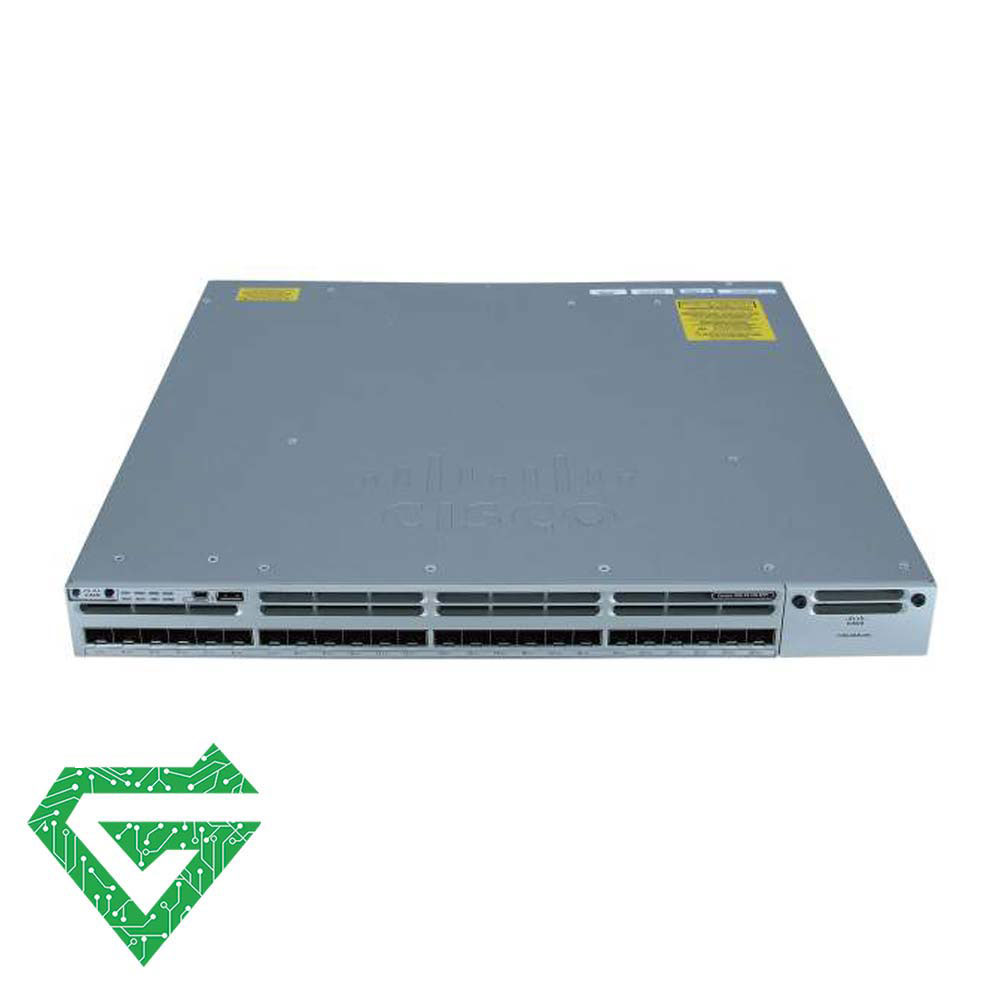

Cisco Catalyst WS-C3850-24XS-E Switch

Cisco Catalyst WS-C3850-24XS-E Switch:

Network switches are one of the most important products in creating a network, which are manufactured and supplied by various companies with different specifications and features. Network switches are a remote communication device that can receive data from devices connected to them and send it to another device.

The Cisco Catalyst WS-C3850-24XS-E Switch was designed by the reputable Cisco company and is sold in the network equipment market. This network switch, which is part of the Cisco Catalyst 3850 family, allows organizations to manage devices connected to the network and also control and manage the electricity of their infrastructure, which reduces energy costs.

Having a powerful dashboard is one of the features of the Cisco Catalyst 3850-24XS-E Switch, which gives managers great power and is very cost-effective due to its many features. This switch has the IOS IP Service operating system and is considered one of the best cisco switches for companies and organizations.

The Cisco Catalyst WS-C3850-24XS-E Switch is a high-performance, Stackable, enterprise-grade switch from the Cisco 3850 Series, specifically designed for aggregation or core-layer deployments in enterprise networks. Unlike most 3850 models that use 1G copper ports, this model features all 10-Gigabit SFP+ ports, making it ideal for high-speed uplinks or server aggregation.

Introducing Cisco Catalyst WS-C3850-24XS-E Switch:

This Cisco 24-port switch is a managed type and operates at Layer 3 or, better said, it supports Layer 3 networking. The received bandwidth of this switch is 480Gbps and sends data at a bandwidth of 160Gbps. This switch has its own technical specifications and features, which we will review below.

The 3850 series switches have 5 optional network modules for the uplink port, and you can purchase the module you need when purchasing this switch. This Cisco 24-port gigabit switch has different ports on the front panel, which we will introduce with the image below, but in general, the Cisco Catalyst WS-C3850-24XS-E Switch has USB ports, console ports, and SFP ports.

You can buy cisco switches in Dubai from Atech.ae, This company supplies network switches wholesale and retail, and the final price is determined based on the time of purchase and the type of warranty. In addition to the reasonable price, Atech.ae, having one of the largest specialized repair shops for Cisco equipment, guarantees the ability to repair and support this product.

Features of Cisco Catalyst WS-C3850-24XS-E Switch:

• 24 × 10-Gigabit SFP+ fiber ports
• Supports both 1G and 10G SFP/SFP+ transceivers
• Full Layer 2 and Layer 3 capabilities (IP Services image)
• Switching capacity: Up to 640Gbps
• Forwarding rate: Up to 476Mpps
• Stackable via Cisco StackWise-480 (up to 9 switches)
• Stack bandwidth: 480 Gbps total
• Runs on Cisco IOS XE (modular, programmable OS)
• Dual hot-swappable power supplies (AC/DC supported)
• Redundant, field-replaceable fans
• MACsec hardware-based encryption support
• Advanced routing protocols: OSPF, EIGRP, BGP, RIP, PIM, VRF-Lite
• Strong security: 802.1X, TrustSec, ACLs, DHCP Snooping
• Supports programmability (NETCONF, RESTCONF, YANG, APIs)
• 1U rack-mountable form factor
