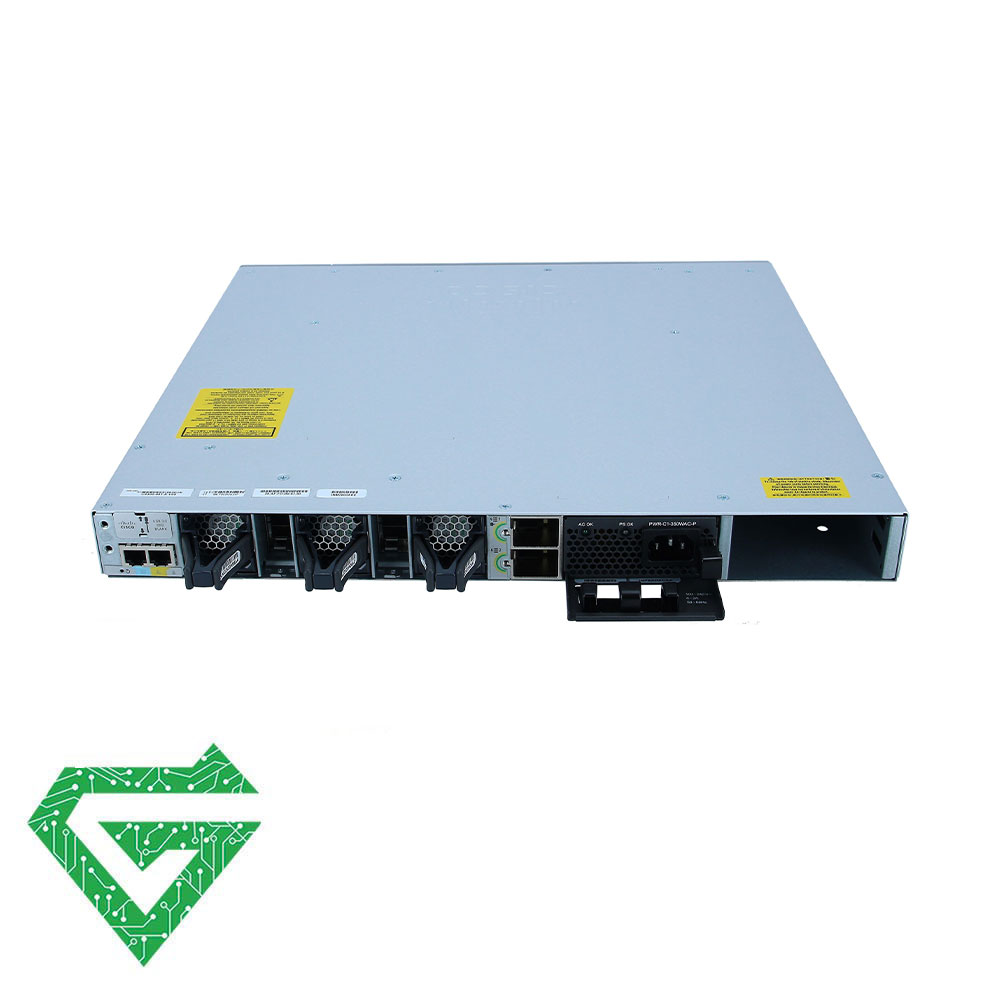

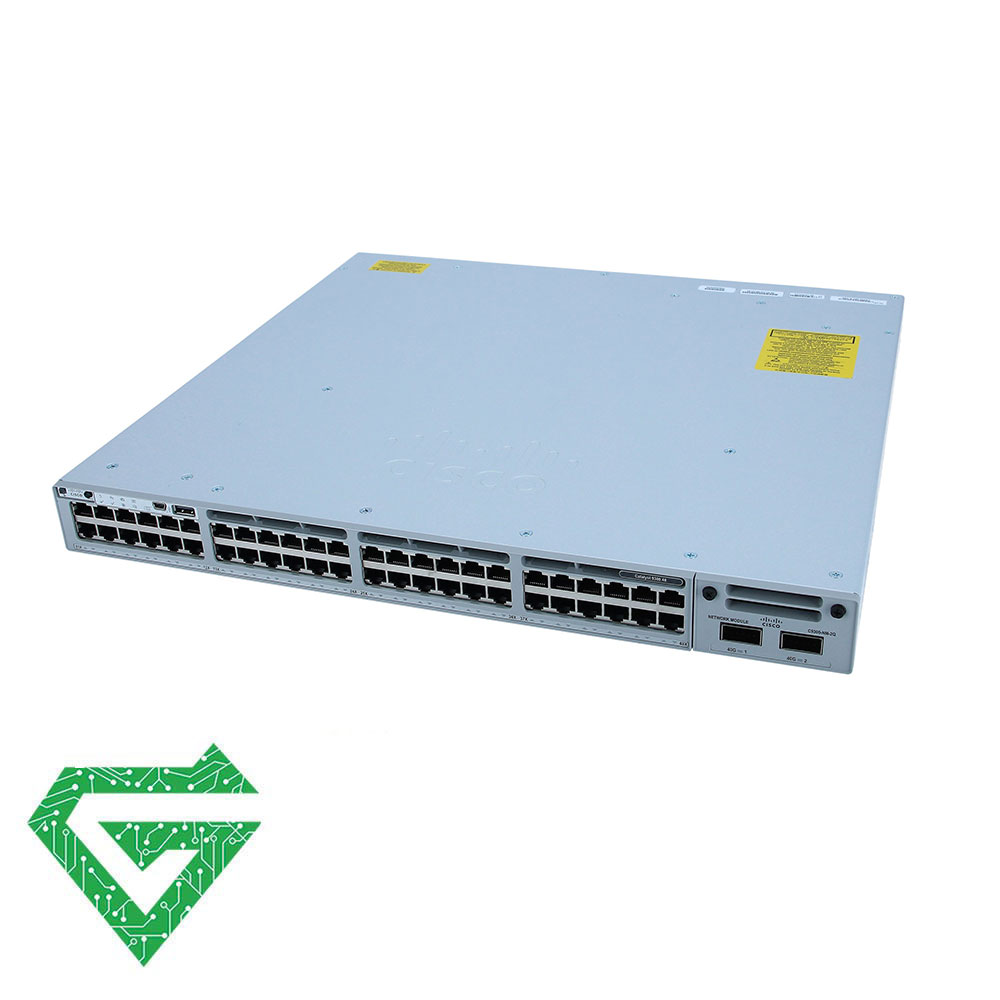

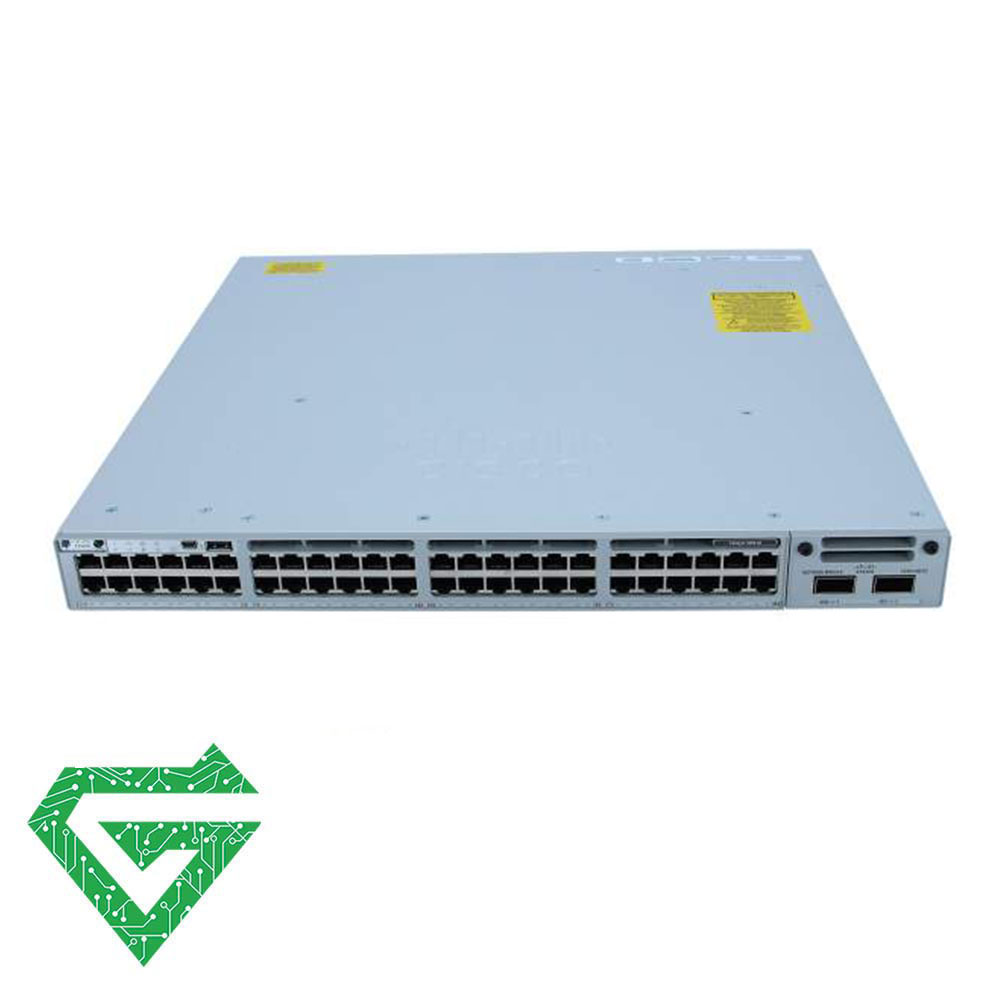

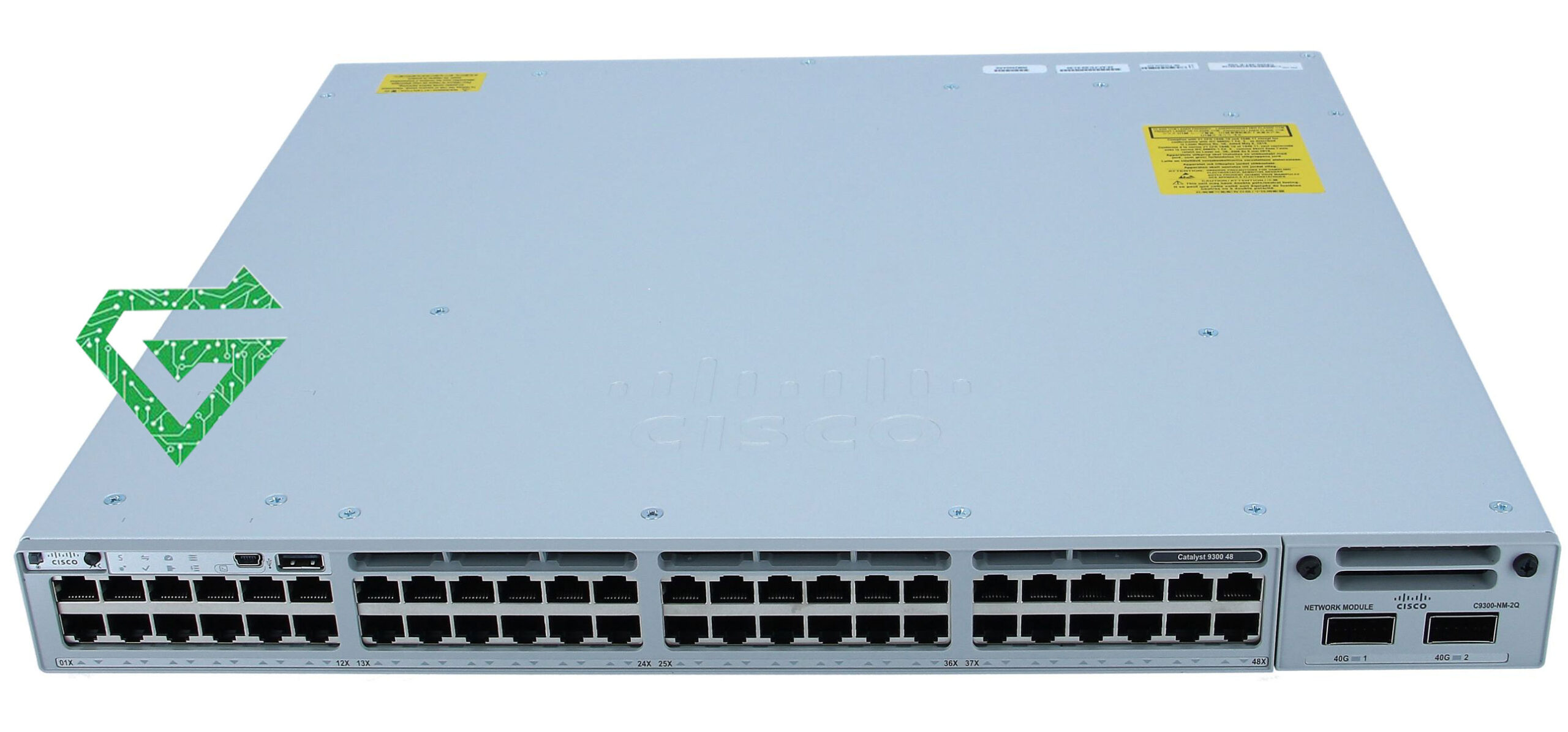

Cisco Catalyst WS-C9300-48T-A Switch

Cisco Catalyst WS-C9300-48T-A Switch:

The Cisco C9300-48T-A switch is one of the 9300 series switches of the Cisco company, which is sold in the network equipment market. Among the capabilities of this network switch, we can mention the set of basic features for Access Defined Software (SD-Access), which is a part of Cisco‘s architecture.

Also, this model has a bandwidth of 480 Gbps, which is part of the most flexible uplink architecture. Cisco C9300-48T-A switch has the first optimized platform for high density with 802.11ac Wave2 standard. which creates maximum scalability in the network.

This 48-port Cisco switch is designed based on the Cisco Unified Access Data Plane 2.0 (UADP) 2.0 architecture, which not only saves you money, but also allows you to have a larger volume of data and higher capacity, and has features As with Cisco IOS XE (scheduled delivery), advanced security and Internet of Things (IoT) capabilities are in a new operating system.

we sells this cisco switch in Atech site with affordable price and 1-year warranty. also Catalyst WS-C9300-48T-A Switch is sold in high quality , so you can buy it calmly. call us for consulting more.

Features of the Cisco C9300-48T-A switch:

• It has 48 Gigabit Ethernet ports
• It has a 350W AC power supply, named PWR-C1-350WAC
• Support for Cisco StackWise-480 technology with the ability to connect up to eight devices
• Cisco StackPower technology support
• It has a transmission rate of 190.48Mpps
• It has a switching capacity of 256 Gbps
• Lack of support for PoE, UPoE and Multigigabit Ethernet capabilities
• The Cisco C9300-48T-A switch can be placed in a stack with up to 8 other switches.

Specification of 9300 Series Cisco Switches:

• Outstanding features of Cisco C9300 series switches:
• In Cisco C9300 series switches such as: Cisco C9300-48T-A switch, it is possible to provide the highest performance in wireless mode with Wave 2 access point.
• It has UADP 2.0 which is Application-Specific Integrated Circuit (ASIC).
• The ability to assign settings from Layer 2 and Layer 3, access control lists (ACLs) and quality of service (QoS) entries.
• Features an x86 CPU with 8GB of memory and 16GB of flash and an external USB 3.0 SSD portable storage slot (offering 120GB of storage with an SSD drive option)
• It has a USB 2.0 slot to download system images and set configuration
• It has Stackable switching that has a bandwidth of up to 480 Gbps.
• Providing flexible uplink capabilities with 1G, Multigigabit, 10G, 25G and 40G links
• Flexible downlink options with 1G and Multigigabit links
• They have the IEEE 802.1ba AV Bridging (AVB) standard so that users can have a better audio and video experience by reducing synchronization time and QoS.
• Precision Time Protocol (PTP; IEEE 1588v2) provides precise clock synchronization with sub-microsecond accuracy, which is suitable for distributing and synchronizing time and frequency in the network.
• Cisco IOS XE is a new operating system with support for model-based programming, including NETCONF, RESTCONF, YANG, on-box Python scripting, streaming telemetry, container-based host application, Patch to fix critical bugs that make it for tasks It is a suitable organization.
• The OS is also built with internal caps to protect against attacks.
• Has policy-based automation from the Edge to the Cloud
• Simple and micro segmentation with predictable and scalable performance
• A secure network provided through the network data platform
• Better launch of new business services and significantly improved problem resolution time
