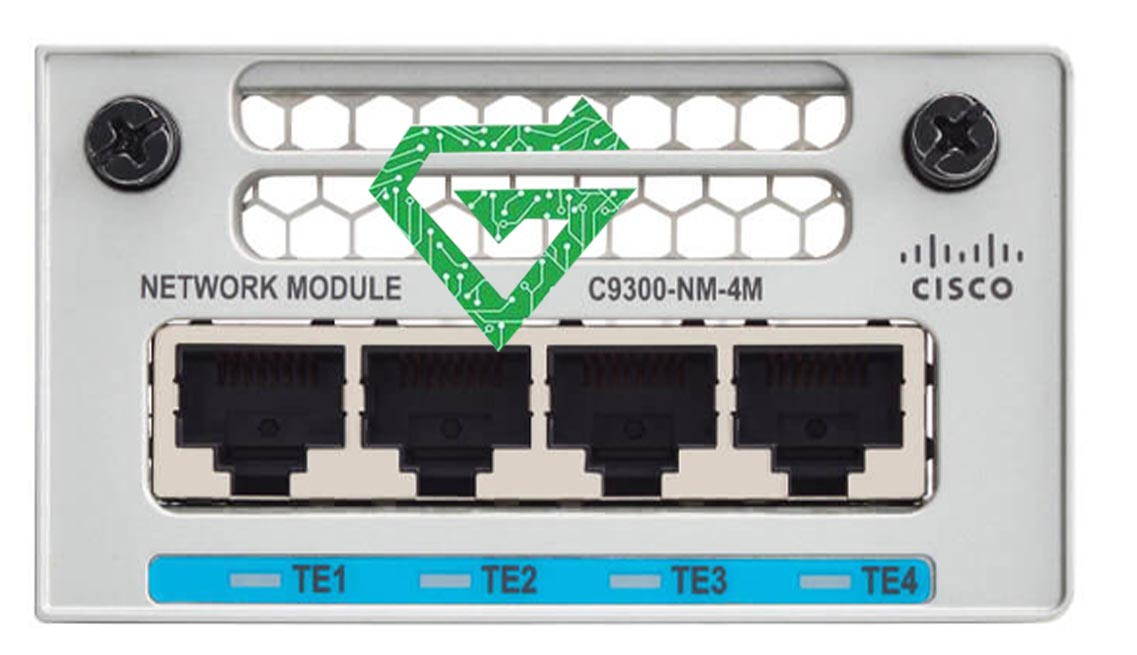

Cisco C9300-NM-4M Card Module:

The Cisco C9300-NM-4M Card Module is used in the Cisco 9300 series switches that use UPLink ports. This Cisco Card Module has four Multigigabit Ethernet (mGig) slots and designed by cisco company.

This Cisco C9300-NM-4M Card Module is one of the most important accessories that You can buy this product in network equipment market for helping you to improve your network. for installing Cisco C9300-NM-4M Card Module needs to some equipment that we are going to explain steps of installing;

Installing the Cisco C9300-NM-4M Card Module on the Switch:

Do not touch the chassis or empty slots when installing or removing the Card Module live current can be an energy hazard.

Equipment that you Required them:

• screwdriver capable of applying the required pressure.
• Panduit High-Pressure Tool with Optional Controlled-Cycle Mechanism (Models CT-720, CT-920, CT-920CH, CT-930, or CT-940CH)
• Wire Stripping Tool
• 2-gauge copper ground wire (insulated or uninsulated) for single-hole grounding
• Single-hole ground wire screw and nut (included in the switch accessory kit)
• Four 14-gauge copper wire leads

Some notices about installing Cisco C9300-NM-4M Card Module:

Note 1: The switch can operate without a network module, but a blank module (without ports or SFP slots) is available and should be installed when the UPLink port is not required.

Note 2: The switch is enabled by inserting or removing a network module with SFP/SFP+/SFP28 slots.

Use only supported network modules and SFP, SFP+, SFP28 or QSFP modules. Each module has an internal serial EEPROM that is encoded with security information.

These cards modules are hot-swappable, meaning that you can swap out compatible modules or use a Blank Module instead while the device is powered on.

Note 3: When a network module is installed, a switch that meets the thermal requirements and specifications is required. However, if the Uplink port is not required, install a blank network module.

Note 4: To prevent damage from static electricity, use protective measures such as gloves and the process outlined below when connecting cables to network switches and other devices.
