Network Switch:

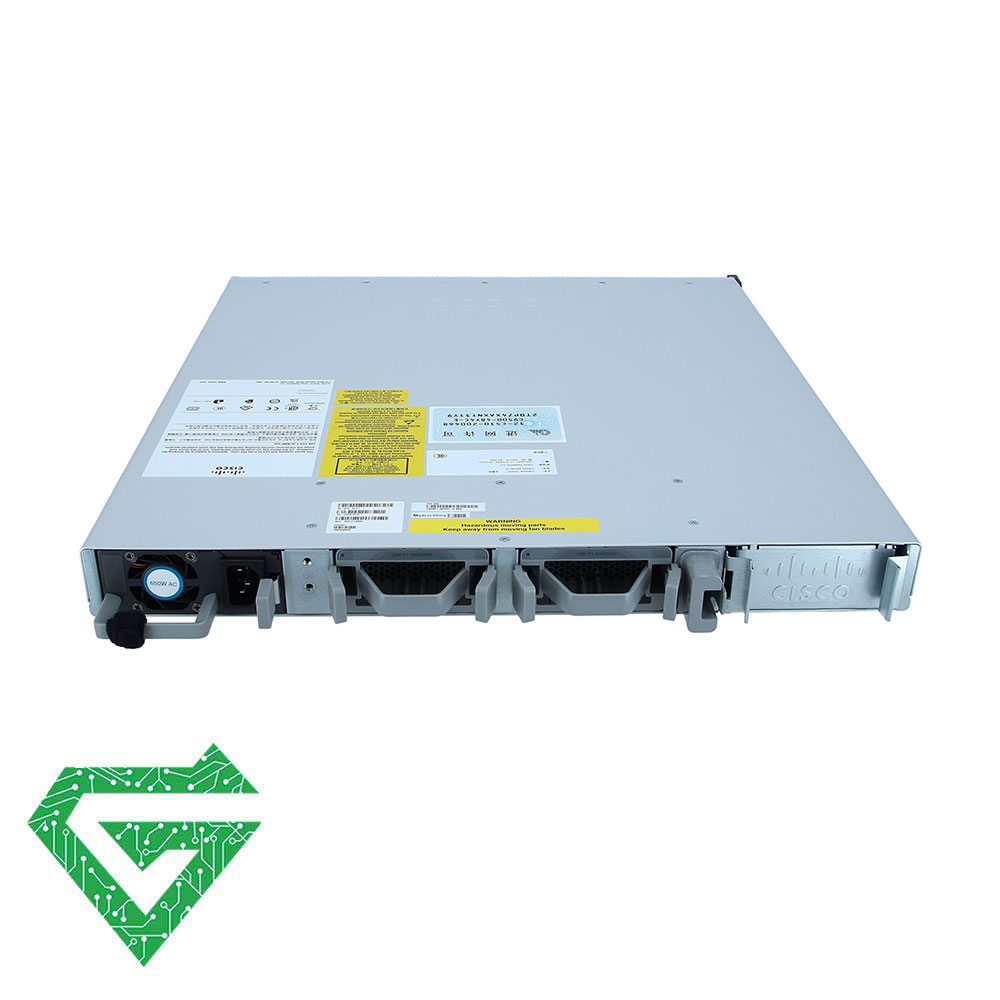

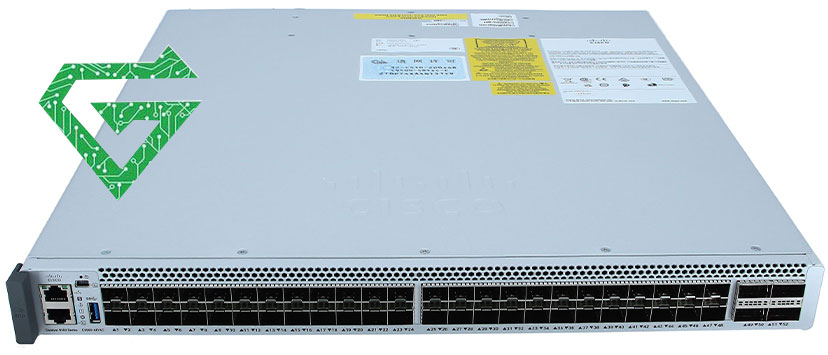

Cisco Catalyst WS-C9500-48Y-4C-A Switch:
The Cisco Catalyst WS-C9500-48Y4C-A Switch is a next-generation, enterprise-class, core-layer, aggregation switch that supports programmability and serviceability, this Cisco switch produced by Cisco company and sells in network equipment market.
The C9500-48Y4C-A is an x86-based switch, making it the first dense, fixed-core enterprise switching platform built for security, IoT, and the cloud. It features a 4-core x86, 2.4 GHz processor, 16 GB DDR4 memory, and 16 GB of onboard storage.
These Cisco 48-port switches are the first 25, 40, and 100 Gigabit Ethernet line switches designed for enterprise environments. They offer unmatched table scale (MAC/route/ACL) and buffering for enterprise applications.
Cisco 9500 Series Switches feature nonblocking QSFP ports for 40 and 100 Gigabit Ethernet and SFP+ ports for 1, 10, and 25 Gigabit Ethernet with granular port densities to meet the diverse needs of organizations.
Routing and infrastructure services by Cisco 9500 switches:
Such as Layer 2 and Layer 3 VPNs (MPLS)
Multiprotocol Label Switching (MPLS) Multicast VPN (MVPN) and Network Address Translation (NAT)
Cisco software-defined access capabilities such as host tracking database
Cross-domain connectivity and Protocol Locator/ID Separation (VRF) VPN routing and routing Protocol Locator/ID Separation (LISP) and network system virtualization with Cisco StackWise virtualization technology that are essential for their placement at the core of organizations.
The Cisco 9500 Series switches also support high availability capabilities such as patching, Graceful Insertion and Removal (GIR), Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), and redundant platinum fans and power supplies.
It is worth noting that the C9500-48Y4C-A switch and the C9500-48Y4C-E switch have all the features and capabilities mentioned in the C9500-48Y4C switch and is shared between two devices, the only difference between these switches is their permissions.
You can buy cisco switches in Dubai from Atech.ae, This company supplies network switches wholesale and retail, and the final price is determined based on the time of purchase and the type of warranty. In addition to the reasonable price, Atech.ae, having one of the largest specialized repair shops for Cisco equipment, guarantees the ability to repair and support this product.
Specification of Cisco Catalyst WS-C9500-48Y4C-A Switch:
- Ports: 24 and 48 25G ports with powerful enterprise features
- Cisco innovation extending SR reach to 300 million
- High performance, SFP28
- Secure partitioning with SD access
- MPLS L2/L3 VPNs, MVPN, flexible design patterns
Technical specification of Cisco Catalyst WS-C9500-48Y4C-A Switch:
| Specification | |
|---|---|
| Switching capacity | Up to 3.2 Tbps |
| Forwarding rate | Up to 1 Bpps |
| Total number of MAC addresses | Up to 82,000 |
| Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) | Up to 212,000 indirect + direct Up to 90,000 host/ARP |
| Total number of IPv6 routes | Up to 212,000 indirect + direct Up to 90,000 host |
| QoS ACL scale | Up to 16000 |
| Security ACL scale | Up to 27000 |
| FNF entries | Up to 98,000 |
| DRAM | 16GB |
| Flash | 16GB |
| VLAN IDs | 4000 |
| Total Switched Virtual Interfaces (SVIs) | 4000 |
| Jumbo frame | 9216bytes |
| Power supply | |
| Power Supply Selection | C9K-PWR-650WAC-R or C9K-PWR-930WDC-R |
| Dimensions, physical, weight, and MTBF | |
| (Dimensions (H x W x D | 4.39cm×44.45cm×45.72cm |
| (Rack units (RU | 1RU |
| Chassis with 2 power supplies and built-In fan | 9.96kg |
| Input voltage | 90to 264 VAC |
| Operating temperature | 32°to 104°F (0° to 40°C) |
| Storage temperature | 4°to 149°F (-20° to 65°C-) |
| Relative humidity operating and nonoperating noncondensing | Ambient (noncondensing) operating: 5% to 90% |
| Ambient (noncondensing) nonoperating and storage: 5% to 95% | |
| Altitude | Operation up to 13,000 feet at 40°C |
| (MTBF (hours | 316960 |
Other Recommended:
| ports |
48 Ports |
|---|---|
| Type of port |
25G |
| Type of switch |
Management |
| Series of Switch |
9500 |
| Stackable |
Yes |
| Layer |
3 |
| PoE |
No |
| Switching Capacity |
3.2 Tbps |
| Forwarding rate |
1 Bpps |
| Flash |
16G |
| RAM |
16G |
| Dimension |
1.73 x 17.5 x 18.0 inch |
| Weight |
9.96 kg |
