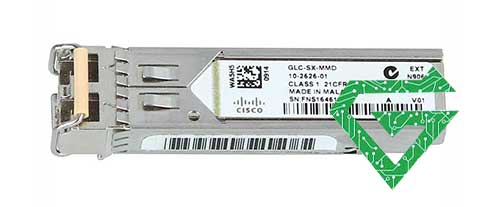

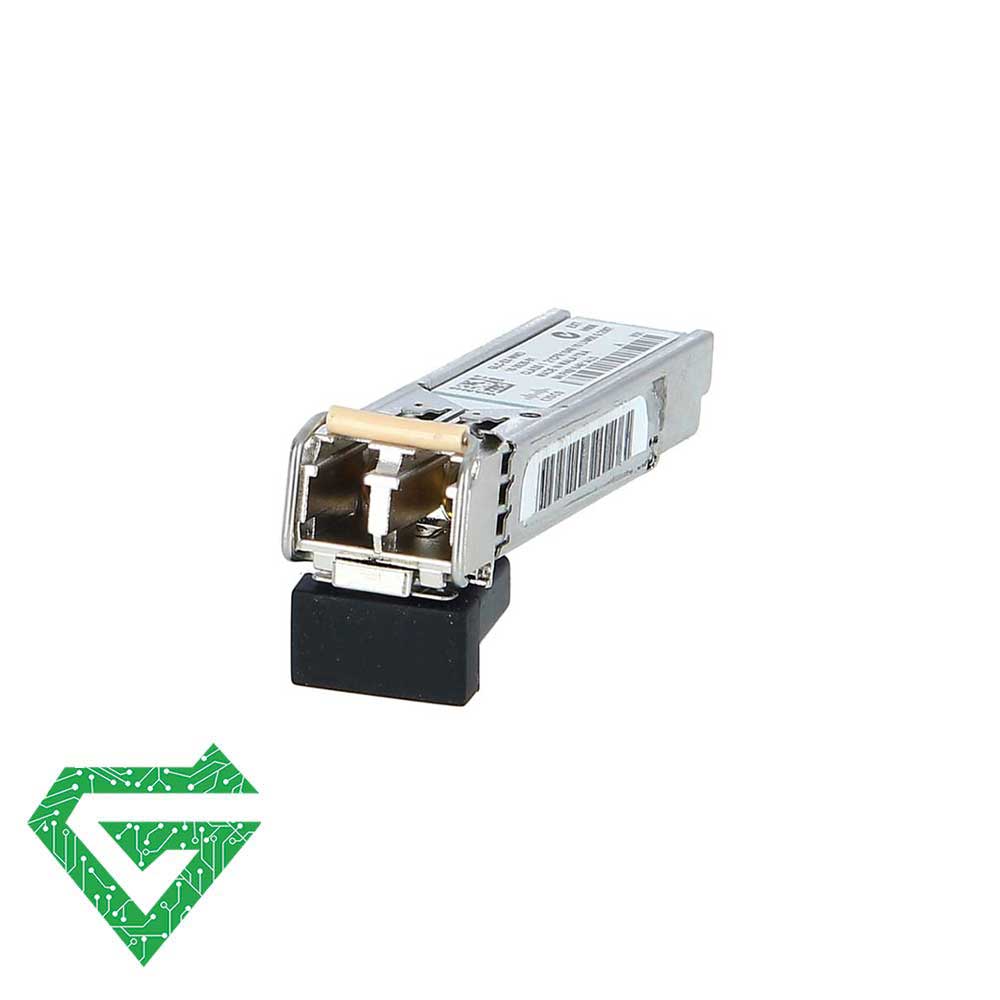

Cisco Fiber Optic Module GLC-SX-MMD

Cisco Fiber Optic Module GLC-SX-MMD:

The Cisco Fiber Optic Module GLC-SX-MMD is a Small Form-Factor Pluggable (SFP) transceiver module designed for Gigabit Ethernet applications over multimode fiber (MMF). It complies with the IEEE 802.3z 1000BASE-SX standard, offering reliable and high-speed connectivity for various networking environments.

Cisco GLC-SX-MM Fiber Optic Module is manufactured by Cisco and is sold in the network equipment market. Today, Cisco GLC-SX-MM fiber optic module is used to transmit signals, which due to the increase in the use of this method, the use of this module has also increased in proportion.

Modules are used in devices such as switches and routers to transmit and receive signals. Cisco GLC-SX-MM fiber optic module can be used to connect to MM multimode fiber optic. If your multimode cable is 50 microns, you can expect it to support a range of up to 550 meters, and of course, Cisco GLC-SX-MM fiber optic module can be used for 62.5 microns multimode connections up to 220 meters.

This module designed by Cisco company and you can buy it in network equipment market with 1-year Atech warranty. If you want to know more about network module specially cisco fiber optical module, you can contact us.

Introducing Cisco Fiber Optic Module GLC-SX-MMD:

The Cisco GLC-SX-MMD is a Small Form-Factor Pluggable (SFP) transceiver designed for Gigabit Ethernet applications over multimode fiber (MMF). Compact and hot-swappable, it allows flexible network deployment without powering down devices, making it ideal for enterprise, campus, and data center networks. Operating at an 850 nm wavelength, the module supports data rates up to 1.25Gbps and can connect devices up to 550 meters on 50 µm fiber or 220 meters on 62.5 µm fiber.

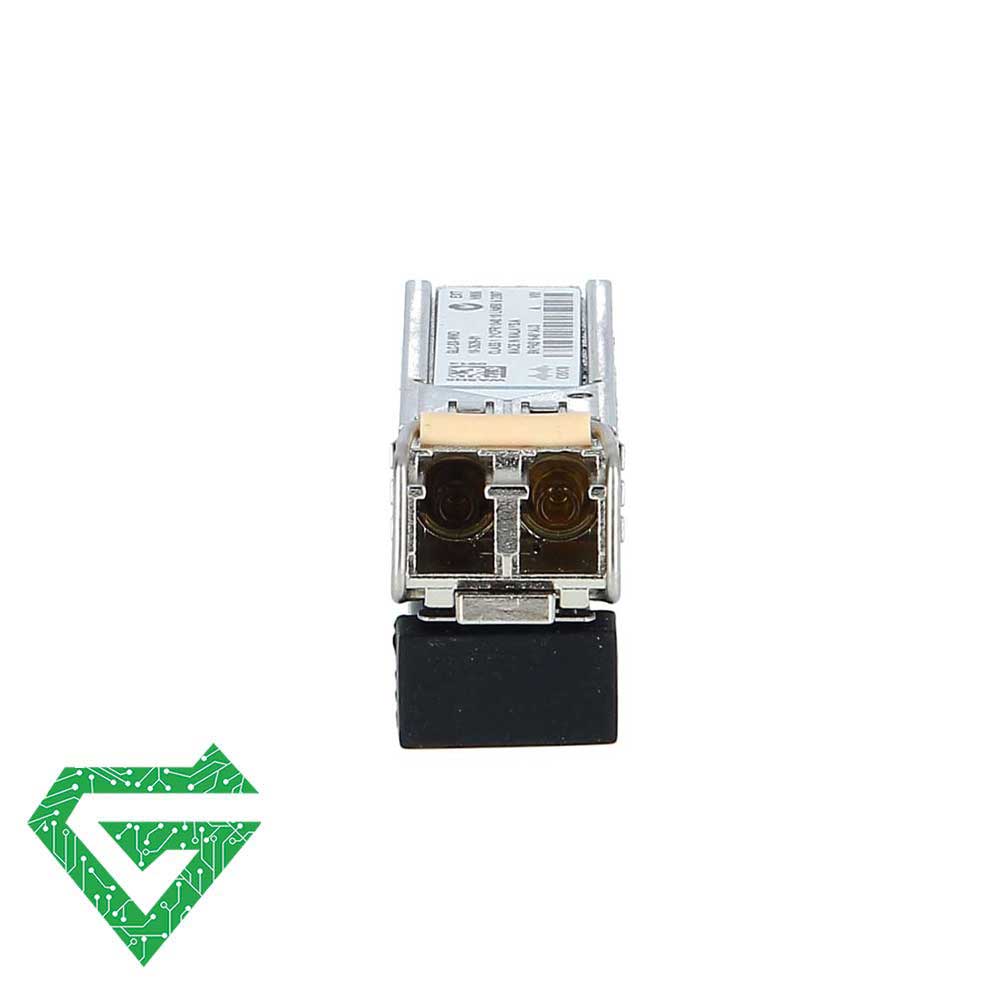

Equipped with dual LC/PC connectors and Digital Optical Monitoring (DOM) for real-time monitoring of temperature, voltage, and optical power, the GLC-SX-MMD ensures reliable performance and easy maintenance. Its hot-swappable design, RoHS compliance, and Laser Class 1 safety certification make it a dependable choice for short-range fiber connectivity.

The module is widely used to interconnect switches, routers, and servers, support Storage Area Networks (SANs), and establish fiber backbone links in data centers and campus networks, providing a versatile, high-performance solution for modern network infrastructures.

Applications of Cisco Fiber Optic Module GLC-SX-MMD:

• Gigabit Ethernet Connections: Ideal for connecting switches, routers, and servers in enterprise networks.
• Fiber Channel Links: Supports high-speed data transfer in storage area networks (SANs).
• Data Centers: Facilitates efficient data transmission within data center environments.
• Campus Networks: Provides reliable connectivity across various campus network segments.

Specifications of Cisco Fiber Optic Module GLC-SX-MMD:

• Data Rate: Supports up to 1.25Gbps, suitable for Gigabit Ethernet applications.
• Wavelength: Operates at an 850 nm wavelength, ideal for short-distance transmission over MMF.
• Connector Type: Equipped with a dual LC/PC connector for secure and efficient fiber connections.
• Distance Range: Up to 550 meters over 50/125 µm laser-optimized multimode fiber (LOMMF) | Up to 220 meters over 62.5/125 µm multimode fiber.
• Digital Optical Monitoring (DOM): Provides real-time monitoring of transceiver parameters such as temperature, voltage, and optical power levels.
• Hot-Swappable: Allows for easy installation and replacement without powering down the system, minimizing network downtime.
• Temperature Range: Standard operating temperature range from 0°C to 70°C.
• Compliance: Meets RoHS standards and is designed to meet Laser Class 1 safety requirements, ensuring safe operation and environmental compliance
