HP ProLiant DL380 Gen9 Server

HP ProLiant DL380 Gen9 Server:

The HP ProLiant DL380 Gen9 Server is a highly versatile and scalable server designed for enterprise-level computing needs. At Atech.ae, we provide high-quality server accessories such as Ram server, CPU Server, Motherboard Server, Hard server and more designed to keep your systems running smoothly and efficiently. From reliable cables to top-tier components, we ensure durability, performance, and peace of mind for every setup.

Features of the HP ProLiant DL380 Gen9 Server:

1. Performance and Scalability: The DL380 Gen9 server is built to deliver exceptional performance and scalability. It supports the latest Intel Xeon E5-2600 v3 and v4 processors, offering a wide range of core counts and clock speeds to meet different workload requirements. It also supports up to 3TB of DDR4 Ram Server, allowing for efficient data processing and multitasking.
2. Form Factor: The HPE server is rack-mountable and typically comes in a 2U form factor. Its compact design allows for efficient use of rack space while providing high-density computing power.
3. Storage Options: The DL380 Gen9 server offers flexible storage options to accommodate various storage needs. It supports multiple drive bays, including hot-plug SAS (Serial Attached SCSI), SATA (Serial ATA), and SSD (Solid State Drive) options. It also supports RAID (Redundant Array of Independent Disks) configurations for data protection and performance optimization.
4. Networking and Connectivity: The server includes multiple networking options for seamless connectivity. It typically comes with multiple Gigabit Ethernet ports and can be equipped with additional network interface cards (NICs) for higher bandwidth requirements. It also supports features like teaming and failover for network redundancy.
5. Management and Monitoring: The DL380 Gen9 server incorporates HPE‘s Integrated Lights-Out (iLO) management technology, which provides comprehensive remote management capabilities. iLO allows administrators to monitor server health, perform remote administration tasks, and access the server console remotely. It simplifies server management and helps minimize downtime.
6. Expansion and Flexibility: The server offers extensive expansion capabilities to accommodate future growth and changing business needs. It includes multiple PCIe slots for adding expansion cards such as additional network adapters, storage controllers, or GPU accelerators. It also supports flexible configurations for different storage, memory, and networking requirements.
7. Energy Efficiency: HP has implemented energy-efficient technologies in the DL380 Gen9 server to reduce power consumption and operational costs. These include power-saving features, such as power-regulating processors, efficient power supplies, and advanced cooling mechanisms.
8. High Availability and Redundancy: The server includes features that enhance availability and minimize downtime. It supports redundant power supplies, hot-swappable components, and advanced error-correcting memory technologies. It also offers features like redundant fans and optional redundant RAID controllers for data protection.
9. Virtualization Support: The DL380 Gen9 server is well-suited for virtualized environments. It supports leading virtualization technologies, such as VMware vSphere and Microsoft Hyper-V, and provides features like Virtual Connect and FlexFabric adapters to optimize virtual machine performance and network connectivity.
10. Security Features: The server incorporates various security features to protect sensitive data and prevent unauthorized access. It includes features like Secure Boot, TPM (Trusted Platform Module), and HP’s Secure Encryption for data-at-rest protection. It also supports secure remote management with SSL encryption and strong authentication options.

The HP ProLiant DL380 Gen9 server offers a total of six PCIe expansion slots for adding additional expansion cards. These PCIe slots provide the flexibility to customize the server’s configuration based on specific requirements.

The DL380 G9 server typically includes three PCIe 3.0 x16 slots and three PCIe 3.0 x8 slots. These slots can be used to install various types of expansion cards, such as network adapters, storage controllers, graphics processing units (GPUs Server), or other specialized add-on cards. The availability and configuration of PCIe slots may vary depending on the specific model and configuration of the Server.

Specifications of HPE DL380 G9:

• CPU Family: Intel® Xeon® E5-2600 v3 and v4 series
• Sockets: 1 or 2
• Core Count: Up to 22 cores per processor
• Cache: Up to 55MB L3
• Turbo Frequency: Up to 3.6 GHz
• Capacity: Up to 3TB DDR4 SmartMemory
• Speed: Up to 2400 MT/s
• Type: RDIMM/LRDIMM
• Error Correction: ECC (Error-Correcting Code)
• Drive Bays: Up to 24 x 2.5″ SFF or 12 x 3.5″ LFF (with optional rear drive cage)
• Controller Options: HPE Dynamic Smart Array B140i (embedded), HPE Smart Array controllers, HPE Smart SAS HBAs
• Drive Types: SAS, SATA, SSD, NVMe
• RAID Support: RAID 0, 1, 5, 6, 10, 50, 60
• Flex Slot Power Supplies: 500W, 800W, 1400W Platinum or Titanium efficiency
• Hot-Plug Support: Yes
• Power Discovery Services: Supported
• Embedded Ports: 4 x 1GbE
• Flexible LOM Options: 1GbE to 40GbE adapters
• PCIe Slots: Up to 6 x PCIe 3.0 slots
• Form Factor: 2U Rackmount
• Dimensions (H x W x D): 8.73 x 44.55 x 67.94 cm (3.44 x 17.54 x 26.75 in) for SFF models | 8.73 x 44.55 x 73.02 cm (3.44 x 17.54 x 28.75 in) for LFF models
• Weight: Approximately 23.6 kg (51.5 lbs) with maximum configuration

Other Recommended:

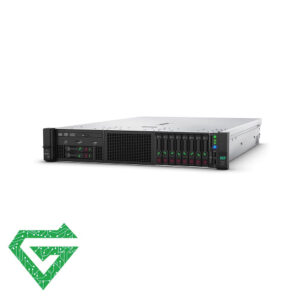

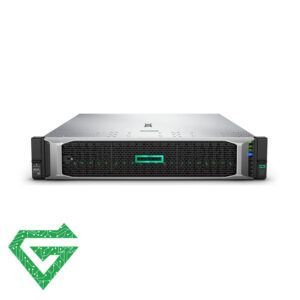

HPE ProLiant DL380 Gen10 Server
