HPE ProLiant DL380 Gen10 Server

HPE ProLiant DL380 Gen10 Server:

The HPE ProLiant DL380 Gen10 Server is a high-performance and versatile server designed for enterprise-level computing and data center environments. You can order Serves and all server accessories such Ram server, CPU Server, Motherboard Server, Hard server and more in network equipment market. If you want to know more about HPE products, contact us.

Features about HPE ProLiant DL380 Gen10 Server:

1. Performance and Scalability: The DL380 Gen10 server is powered by the latest Intel CPU Scalable processors, offering a wide range of core counts and clock speeds to meet diverse workload requirements. It supports up to 3TB of DDR4 Ram Server and provides increased performance and scalability compared to its predecessor, the DL380 Gen9.
2. Form Factor: This HPE server is a rack-mountable unit and typically comes in a 2U form factor. Its compact design allows for efficient use of rack space while providing high-density computing power.
3. Storage Options: The DL380 Gen10 server offers flexible storage options to meet various storage needs. It supports multiple drive bays, including hot-plug SAS (Serial Attached SCSI), SATA (Serial ATA), and NVMe (Non-Volatile Memory Express) SSD options. It also supports RAID configurations for data protection and performance optimization.
4. Networking and Connectivity: The server includes multiple networking options for seamless connectivity. It typically comes with multiple Gigabit Ethernet ports and can be equipped with additional network interface cards (NICs) for higher bandwidth requirements. It also supports features like teaming and failover for network redundancy.
5. Management and Monitoring: The DL380 Gen10 server incorporates HPE’s Integrated Lights-Out (iLO) 5 management technology, which provides comprehensive remote management capabilities. iLO 5 allows administrators to monitor server health, perform remote administration tasks, and access the server console remotely. It simplifies server management and helps minimize downtime.
6. Expansion and Flexibility: The server offers extensive expansion capabilities to accommodate future growth and changing business needs. It includes multiple PCIe slots for adding expansion cards such as additional network adapters, storage controllers, or GPU accelerators. It also supports flexible configurations for different storage, memory, and networking requirements.
7. Energy Efficiency: HPE has implemented energy-efficient technologies in the DL380 Gen10 server to reduce power consumption and operational costs. These include power-regulating processors, efficient power supplies, and advanced cooling mechanisms to optimize energy usage.
8. High Availability and Redundancy: The server includes features that enhance availability and minimize downtime. It supports redundant power supplies, hot-swappable components, and advanced error-correcting memory technologies. It also offers features like redundant fans and optional redundant RAID controllers for data protection.
9. Virtualization Support: The DL380 Gen10 server is well-suited for virtualized environments. It supports leading virtualization technologies, such as VMware vSphere and Microsoft Hyper-V, and provides features like Virtual Connect and FlexFabric adapters to optimize virtual machine performance and network connectivity.
10. Security Features: The server incorporates various security features to protect sensitive data and prevent unauthorized access. It includes features like Silicon Root of Trust, Secure Recovery, and HPE’s Integrated Lights-Out (iLO) Advanced Security Pack for enhanced server security. It also supports secure remote management with SSL encryption and strong authentication options.

The HPE ProLiant DL380 Gen10 server is designed with energy efficiency in mind and offers several features to optimize power consumption.

Technical specifications HPE ProLiant DL380 Gen10 Server:

• Processor Name Intel
• Processor family: Intel® Xeon® Scalable 8100/8200 series Intel® Xeon® Scalable 6100/6200 series Intel® Xeon® Scalable 5100/5200 series Intel® Xeon® Scalable 4100/4200 series Intel® Xeon® Scalable 3100/3200 series
• Number of processors: 1 or 2
• CPU Server core available 4 to 28 core, depending on model
• Processor cache 8.25 – 38.50 MB L3, depending on processor model
• Processor speed 3.8 GHz, maximum depending on processor
• Power supply type 2 Flexible Slot power supplies, maximum depending on model
• Expansion slots 8, for detail descriptions reference the Quick Specs
• Maximum memory 3.0 TB with 128 GB DDR4
• 6.0 TB with 512 GB HPE DC Persistent Memory Modules (Available 2H19)
• Memory, standard 3.0 TB (24 X 128 GB) LRDIMM
• 6.0 TB (12 X 512 GB) HPE DC Persistent Memory Modules – available 2H19
• Memory slots 24 DIMM slots
• Memory type HPE DDR4 Smart Memory and HPE DC Persistent Memory (available 2H19), depending on model
• System fan features Hot-plug redundant fans, standard
• Network controller HPE 1 Gb 331i Ethernet adapter 4-ports per controller and/or optional HPE FlexibleLOM, depending on model
• Storage controller 1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a and/or 1 HPE Smart Array P816i-a and/or 1 HPE Smart Array E208i-a, depending on model
• Minimum dimensions ( H x W x D) 44.55 x 73.03 x 8.74 cm
• Weight 14.76 kg

Other Recommended:

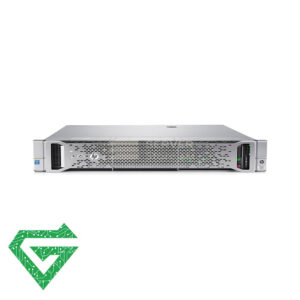

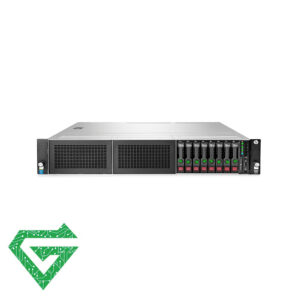

HP ProLiant DL380 Gen9 Server
