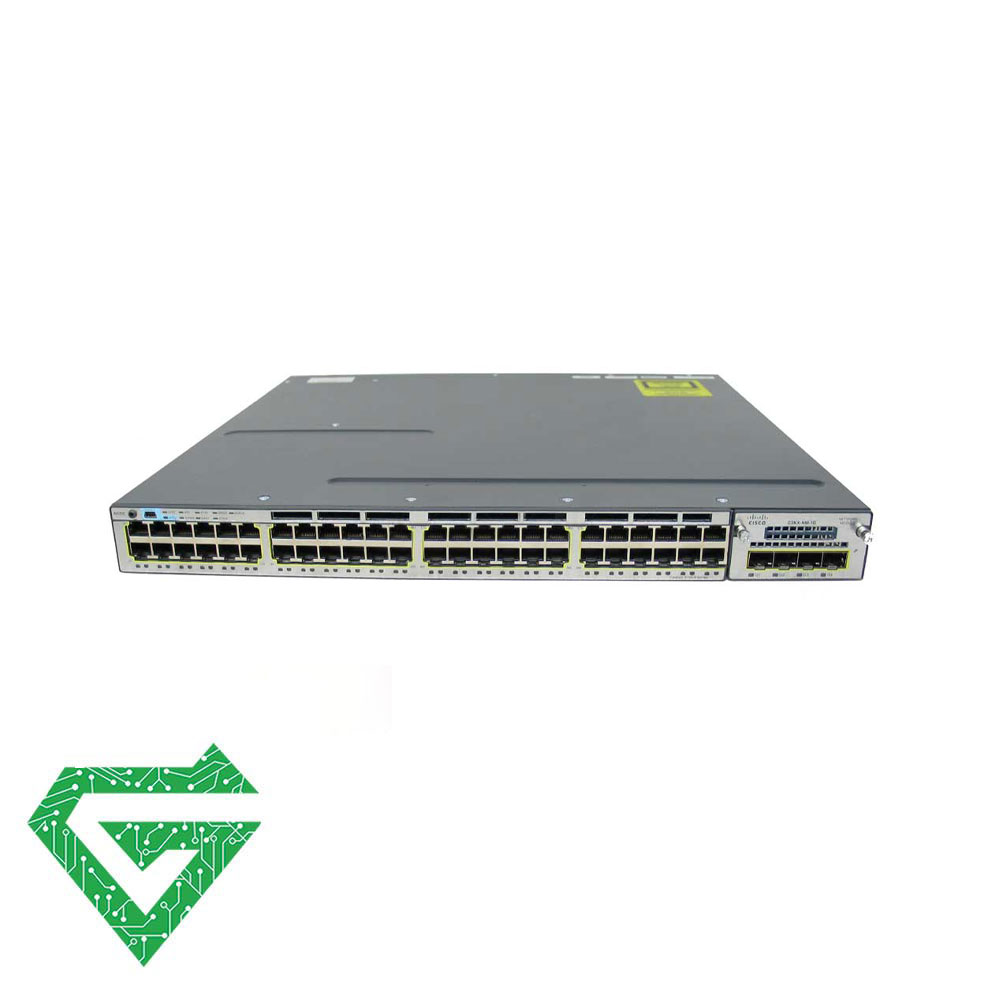

Cisco Catalyst WS-C3750X-48T-S Switch

Cisco Catalyst WS-C3750X-48T-S Switch:

The Cisco Switch such as Cisco Catalyst WS-C3750X-48T-S Switch is a model from the Cisco Catalyst 3750-X Series of switches. This product that designed by cisco company, sells in network equipment marketing.

You can buy cisco switches in Dubai from Atech.ae, This company supplies network switches wholesale and retail, and the final price is determined based on the time of purchase and the type of warranty. In addition to the reasonable price, Atech.ae, having one of the largest specialized repair shops for Cisco equipment, guarantees the ability to repair and support this product.

Features of Cisco Catalyst WS-C3750X-48T-S Switch:

1. Port Configuration: The WS-C3750X-48T-S offers 48 Ethernet ports with 10/100/1000 Mbps (Gigabit) connectivity. These ports provide high-speed data connectivity for devices in the network.
2. Uplink Options: The network switch includes four SFP (Small Form-Factor Pluggable) uplink ports, which can be used to connect the switch to other network devices or for uplinking to higher-level switches or routers. These uplink ports support various SFP transceiver modules for different connectivity options, such as fiber optic or copper Ethernet connections.
3. Stackable Design: The 3750X-48T-S switch is stackable, allowing you to stack multiple switches together and manage them as a single logical unit. Stacking provides increased scalability, simplified management, and improved resiliency by creating a unified switch entity.
4. Enhanced Software Features: The “-S” in the model name indicates that the switch is equipped with the “Standard” software feature set. This feature set provides a wide range of Layer 2 and Layer 3 capabilities, including advanced security features, Quality of Service (QoS), VLAN support, and dynamic routing protocols like OSPF (Open Shortest Path First) and EIGRP (Enhanced Interior Gateway Routing Protocol).
5. Power Efficiency: The 3750X-48T-S switch is designed with energy-saving features, such as Cisco Energy-Wise, which helps monitor and control power consumption to optimize energy usage and reduce costs.
6. Redundancy and High Availability: The switch supports features like redundant power supplies and redundant fans to ensure high availability and minimize downtime in case of hardware failures.
7. Advanced Security Features: The switch incorporates various security features to help protect the network and connected devices. These features include access control lists (ACLs), port security, DHCP snooping, IP Source Guard, and Dynamic Host Configuration Protocol (DHCP) protection, among others.
8. Management and Automation: The switch can be managed using Cisco’s command-line interface (CLI), web-based GUI (Graphical User Interface), or through Cisco Network Assistant software. It also supports SNMP (Simple Network Management Protocol) for network monitoring and management. Additionally, the switch can be integrated with Cisco DNA Center for centralized management and automation.
9. The Cisco Catalyst 3750X-48T-S switch is a versatile and feature-rich offering in the Catalyst 3750-X Series, suitable for various network deployments. For more detailed information and specifications, it’s recommended to consult the official Cisco documentation or contact Cisco support.

Specifications of Cisco Catalyst WS-C3750X-48T-S switch:

1. 1. Performance and Switching Capacity: The WS-C3750X-48T-S switch offers wire-speed performance, meaning it can forward traffic at the maximum rate of 10/100/1000 Mbps on all its ports simultaneously. It has a switching capacity of 160 Gbps, which enables high-performance and low-latency data transmission within the network.
   2. Stacking Technology: The switch supports Cisco StackWise Plus technology, allowing you to stack up to nine switches together to form a single logical unit. Stacking eliminates the need for a separate switch management interface and simplifies configuration and management tasks across the stack. It also provides high-speed interconnects between the switches, resulting in increased bandwidth and improved resiliency.
   3. Cisco StackPower: The 3750X-48T-S switch is compatible with Cisco StackPower technology. StackPower allows you to aggregate the power supplies of multiple switches in a stack, creating a power pool that can be shared among the switches. This feature provides power supply redundancy and flexibility, allowing for efficient power management within the stack.
   4. Flexibility in uplink Connectivity: In addition to the four SFP uplink ports, the switch supports Cisco TwinGig Converter Modules. These modules allow you to convert the SFP uplink ports into regular Gigabit Ethernet copper ports, providing flexibility in choosing the uplink media type.
   5. Layer 2 and Layer 3 Features: The switch supports a wide range of Layer 2 and Layer 3 features, including VLANs, Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP), and Virtual Router Redundancy Protocol (VRRP). These features enable network segmentation, redundancy, and efficient traffic forwarding.
   6. Advanced QoS Capabilities: The switch offers advanced Quality of Service (QoS) capabilities, allowing you to prioritize traffic based on various criteria such as VLAN, IP address, protocol, or TCP/UDP port numbers. This ensures that critical applications receive the necessary bandwidth and network resources for optimal performance.
   7. IPv6 Support: The 3750X-48T-S switch is IPv6 ready and supports IPv6 routing and transition technologies, enabling smooth migration to IPv6 networks.
   8. Management and Monitoring: The switch can be managed using various methods, including CLI, web-based GUI, and Cisco Network Assistant. It also supports remote management through SNMPv3, allowing for centralized monitoring and configuration of the switch. Additionally, the switch is compatible with Cisco Smart Install, which simplifies the deployment of new switches in the network.
   9. Enhanced Security: The switch provides robust security features to protect against unauthorized access and threats. It supports features like 802.1X port-based authentication, MAC-based authentication, DHCP snooping, Dynamic ARP Inspection (DAI), and IP Source Guard. These features help prevent unauthorized devices from accessing the network and mitigate attacks such as DHCP and ARP spoofing.
   10. Environmental Considerations: The 3750X-48T-S switch is designed with environmental sustainability in mind. It complies with various environmental standards such as Restriction of Hazardous Substances (RoHS) and has power-saving features to reduce energy consumption
