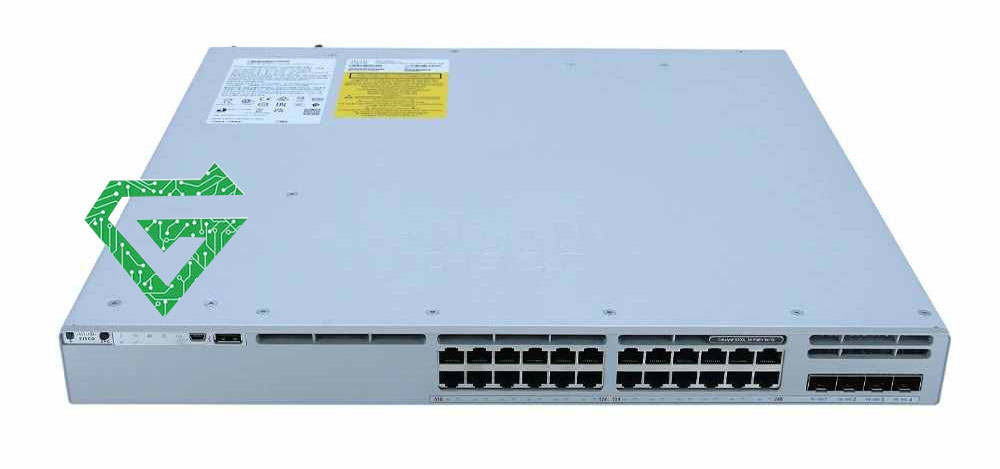

Cisco Catalyst WS-C9300L-24P-4G-A Switch

Cisco Catalyst WS-C9300L-24P-4G-A Switch:

The Cisco C9300L-24P-4G-A is a 24-port switch for enterprise networks, where network stability is guaranteed, and it is essential to be able to use it. The switch is equipped with 24 Gigabit Ethernet ports with PoE+ and 4 SFP uplink ports and helps organizations to optimally set up the network. This cisco switch sells in network equipment market.

The Cisco C9300L-24P-4G-A is a Cisco 9300 Series switch that is part of the 9300L family of switches. The Cisco 9300 Series consists of four switch families: C9300L fixed uplink switches, C9300 modular uplink switches, C9300X modular uplink switches, and C9300 higher scale modular uplink switches.

The Cisco 9300 Series is Cisco’s core enterprise switching platform designed to deliver security, IoT, mobility, and cloud services. It is the industry’s next-generation, most expansive switching platform. You can buy cisco switches in Dubai from Atech.ae, with high quality and affordable prices.

The Cisco 9300 Series offers the highest stacking density in the industry, with up to 1TB of stack bandwidth and the most flexible architecture for uplinks. The Cisco 9300 Series Switches are the first platform optimized for high-density Wi-Fi 6 and the 802.11ac Wave2 standard. These powerful switches are capable of setting new highs for network scaling.

Features of Cisco Catalyst WS-C9300L-24P-4G-A Switch:

The Cisco C9300L-24P-4G-A switch from the 9300L switch family is a very secure, reliable and flexible switch for your network. The configuration of this switch includes 24 +PoE ports with a speed of 10/100/1000 and 4 fixed uplink ports (four SFP ports) with a speed of 1 Gigabit per second.

The Cisco C9300L-24P-4G-A switch is also equipped with three replaceable fans (FRU) and dual modular power supplies. The Cisco C9300L-24P-4G-A switch supports two main and redundant power supplies.

This switch comes with only one power supply by default, and a second power supply can be ordered when ordering the switch or at any time as needed. It is also important to note that if only one power supply is installed for this switch, it must always be in the slot corresponding to power supply.

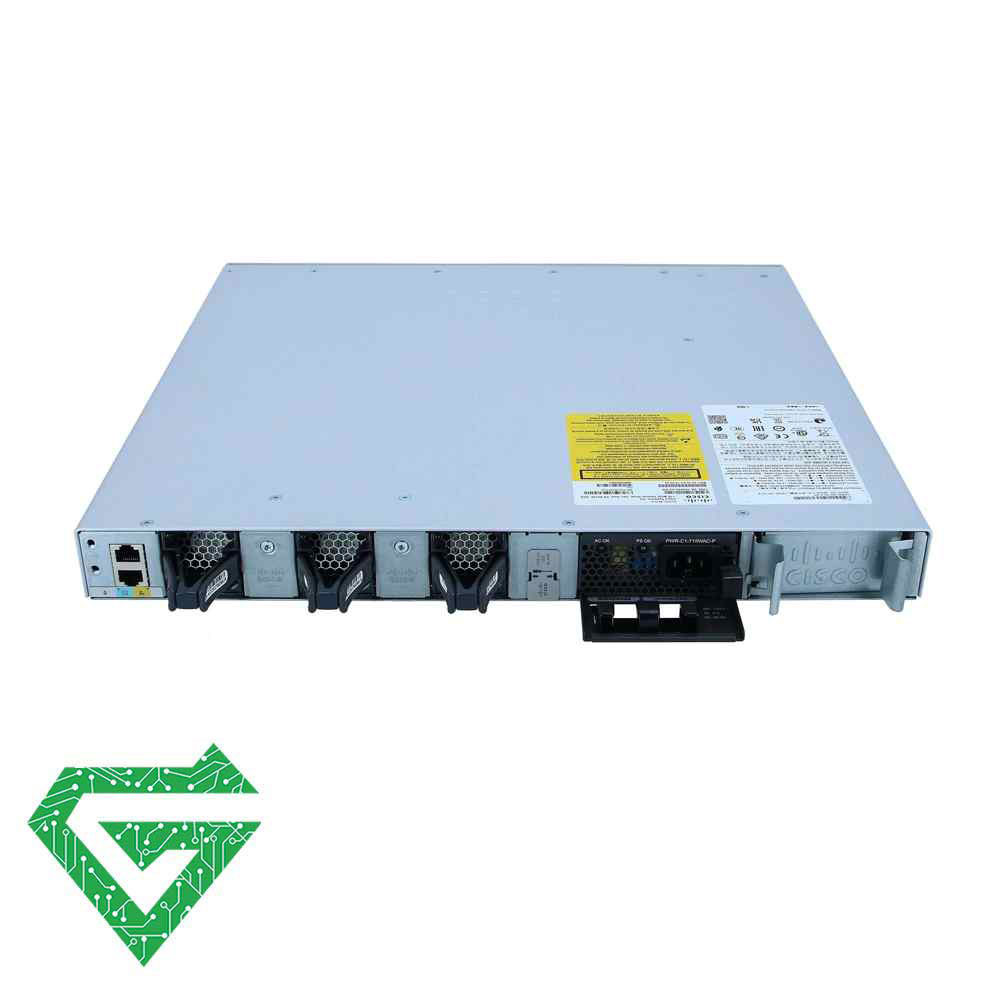

In addition, the C9300L-24P-4G-A switch also supports highly efficient stacking. The stacking capacity or stack bandwidth for this network switch is 320Gbps. On the rear panel of this switch, there is a 10/100/1000 RJ45 management port that the network specialist can use to enter his settings.

Overall, the Cisco C9300L-24P-4G-A switch is a very reliable switch for your network with powerful features such as security, flexibility, compatibility and high adaptability. With support for Full Flexible NetFlow technology, it is able to provide you with advanced network monitoring capabilities. The software used in this cisco switch is Network Advantage.

PoE+ capability in Cisco C9300-24P-A switch:

The Cisco C9300L-24P-4G-A switch, with PoE+ support, provides a total of 505 watts of output power through its 24 ports to power and supply power to various network devices, such as cameras, IP phones, printers, etc. The power supply used by this switch is capable of supplying 715 watts of AC power to this device.

As mentioned, this switch is provided with a default primary power supply at the time of purchase, but the user can purchase a power module appropriate for this device and place it in the slot on the rear panel of this switch as a second power supply.

Note that the power supplies compatible with this device that you can use as a secondary power source are PWR-C1-350WAC, PWR-C1-715WAC, and PWR-C1-1100WAC. If any of these power modules are used as a second power source, the PoE power that can be provided through this switch will reach 720 watts.
