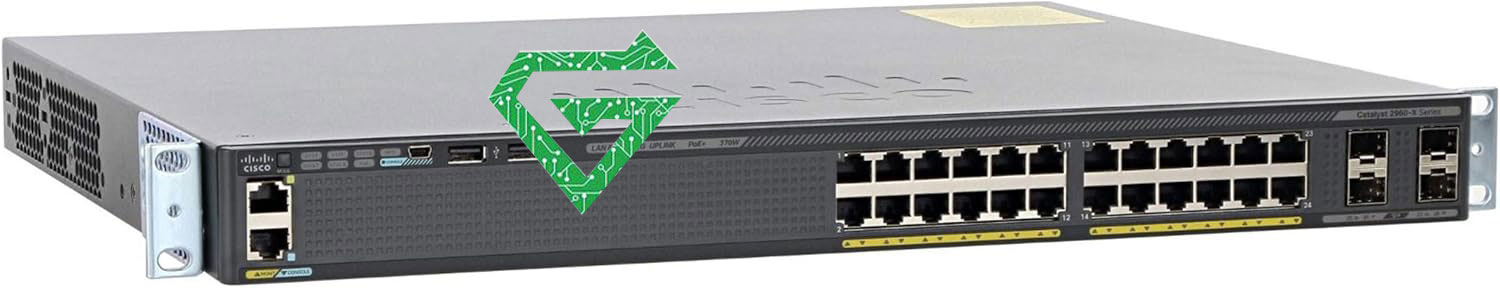

Cisco Catalyst WS-C2960X-24PS-L Switch

Cisco Catalyst WS-C2960X-24PS-L Switch:

The Cisco WS-C2960X-24PS-L is a model from the Cisco Catalyst 2960-X Series of switches. This Cisco Switch that designed by cisco company, sells in network equipment market.

Features of Cisco Catalyst WS-C2960X-24PS-L Switch:

1. Port Configuration: The WS-C2960X-24PS-L switch offers 24 Ethernet ports with Power over Ethernet (PoE) support. These ports provide 10/100/1000 Mbps (Gigabit) connectivity and can deliver both data and power to compatible PoE-enabled devices, such as IP phones, wireless access points, and IP cameras.
2. PoE Power Budget: The switch has a PoE power budget of up to 370W, allowing you to power multiple PoE devices simultaneously without the need for separate power adapters or injectors.
3. uplink Options: The network switch includes four Gigabit Ethernet SFP (Small Form-Factor Pluggable) uplink ports. These ports can be used for high-speed connectivity to other switches, routers, or network devices via fiber optic or copper Ethernet connections. Additionally, there are two additional 10/100/1000 Mbps copper Ethernet uplink ports for more flexible connectivity options.
4. Enhanced Software Features: The “-L” in the model name indicates that the switch is equipped with the “LAN Base” software feature set. This feature set provides a range of Layer 2 switching capabilities, including VLAN support, Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP). It also supports basic IP routing.
5. FlexStack-Plus Support: The switch supports Cisco FlexStack-Plus technology, enabling you to stack up to eight switches together and manage them as a single logical unit. Stacking provides scalability, simplified management, and enhanced resiliency for the network.
6. Security Features: The switch incorporates various security features to protect the network and connected devices. These features include port security, DHCP snooping, Dynamic ARP Inspection (DAI), IP Source Guard, Secure Shell (SSH) Protocol, and Secure Sockets Layer (SSL) encryption for secure management access.
7. Quality of Service (QoS): The Cisco switch supports advanced QoS capabilities, allowing you to prioritize traffic based on different criteria such as VLAN, IP address, protocol, or TCP/UDP port numbers. This enables you to allocate network resources effectively and ensure optimal performance for critical applications.
8. Management and Automation: The switch can be managed using Cisco’s command-line interface (CLI), web-based GUI, or through Cisco Prime Infrastructure software. It also supports Simple Network Management Protocol (SNMP) for network monitoring and management. Additionally, the switch can be integrated with Cisco DNA Center for centralized management and automation.
9. Energy Efficiency: The WS-C2960X-24PS-L switch is designed with energy-saving features, such as Cisco EnergyWise, which helps monitor and control power consumption to optimize energy usage and reduce costs.
10. Limited Lifetime Warranty: Like other Cisco Catalyst switches, the WS-C2960X-24PS-L switch comes with a limited lifetime hardware warranty, providing peace of mind and support for your network infrastructure.

These details provide a general overview of the Cisco WS-C2960X-24PS-L switch and its features. For more specific information and technical specifications, I recommend referring to the official Cisco documentation or reaching out to Cisco support.

Some additional details of Cisco WS-C2960X-24PS-L switch:

1. PoE+ Support: The switch supports Power over Ethernet Plus (PoE+), which provides higher power output compared to standard PoE. This allows for the powering of devices that require more power, such as high-power IP phones or pan-tilt-zoom (PTZ) cameras.
2. VLAN Support: The switch supports Virtual LAN (VLAN) features, including IEEE 802.1Q VLAN tagging and VLAN trunks. VLANs allow for network segmentation, enabling better traffic management, security, and isolation of devices within different logical networks.
3. Layer 3 Routing: While the WS-C2960X-24PS-L primarily focuses on Layer 2 switching, it does offer basic Layer 3 routing capabilities. It supports static IP routing, allowing for simple inter-VLAN routing within the switch.
4. Redundancy and High Availability: The switch supports features like Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP) for loop prevention and rapid convergence in case of network failures. It also supports redundant power supply options for increased power supply reliability.
5. Port Security: The switch offers port security features, allowing you to control and restrict access to specific switch ports based on MAC addresses. This helps prevent unauthorized devices from connecting to the network.
6. MACsec Encryption Support: The WS-C2960X-24PS-L switch supports MACsec (Media Access Control Security) encryption, which provides secure communication between network devices at the link layer. MACsec ensures data confidentiality and integrity, protecting against potential threats such as eavesdropping or tampering.
7. Cisco Smart Install Support: The switch is compatible with Cisco Smart Install, which simplifies the deployment of new switches in the network. Smart Install allows for automated configuration and image installation, reducing the time and effort required for initial switch setup.
8. Cisco Prime Infrastructure Integration: The switch can be integrated with Cisco Prime Infrastructure, a network management platform that provides comprehensive monitoring, configuration, and troubleshooting capabilities for network devices. This integration enhances network visibility and simplifies management tasks.
9. Energy-Efficient Ethernet (EEE): The switch supports Energy-Efficient Ethernet (IEEE 802.3az), a feature that reduces power consumption during periods of low network utilization. EEE helps optimize energy usage and contributes to overall energy efficiency.
10. Advanced Troubleshooting: The switch includes various diagnostic and troubleshooting tools, such as Cisco IOS Embedded Event Manager (EEM), which allows for proactive monitoring and event-driven actions. It also supports Cisco Smart Call Home, which enables automated fault detection and reporting for proactive maintenance and support.

You can buy cisco switches in Dubai from Atech.ae, This company supplies network switches wholesale and retail, and the final price is determined based on the time of purchase and the type of warranty. In addition to the reasonable price, Atech.ae, having one of the largest specialized repair shops for Cisco equipment, guarantees the ability to repair and support this product.
