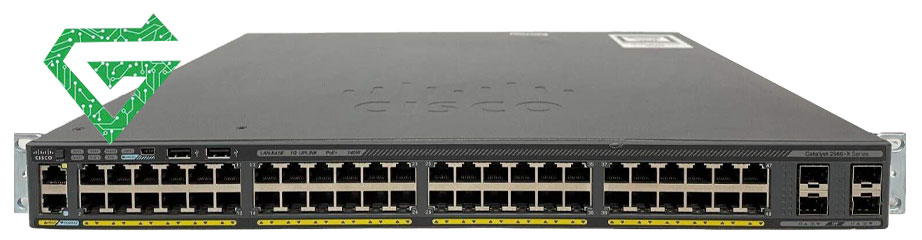

Cisco Catalyst WS-C2960X-48FPS-L Switch

Cisco Catalyst WS-C2960X-48FPS-L Switch:

The Cisco Catalyst WS-C2960X-48FPS-L is a model of network switch manufactured by Cisco Systems. It belongs to the Cisco Catalyst 2960-X Series, which is a line of fixed-configuration switches designed for small to medium-sized businesses, enterprise branch offices, and campus networks. This Cisco Switch that designed by cisco company, sells in network equipment market.

You can buy cisco switches in Dubai from Atech.ae, This company supplies network switches wholesale and retail, and the final price is determined based on the time of purchase and the type of warranty. In addition to the reasonable price, Atech.ae, having one of the largest specialized repair shops for Cisco equipment, guarantees the ability to repair and support this product.

Feature of Cisco Catalyst WS-C2960X-48FPS-L Switch:

1. Port Density: It has 48 Ethernet ports, which are 10/100/1000 Mbps Gigabit Ethernet ports. Additionally, it has four SFP (Small Form-Factor Pluggable) uplink ports, which can support Gigabit Ethernet or 1/10 Gigabit Ethernet connectivity.
2. Power over Ethernet (PoE): The “FPS” in the model name stands for “Full PoE+” capability. This means that the switch can provide power to connected devices over Ethernet cables, following the IEEE 802.3af and 802.3at PoE standards. It can deliver up to 740W of total PoE power, allowing you to connect and power PoE-enabled devices such as IP phones, wireless access points, and IP cameras.
3. Switching Capacity: The network switch offers a forwarding bandwidth of up to 216 Gbps, allowing for high-performance and low-latency switching within the network.
4. FlexStack-Plus Technology: The Cisco Catalyst WS-C2960X-48FPS-L supports Cisco’s FlexStack-Plus technology, which enables stacking of up to eight switches with a single stack unit. This simplifies management and increases scalability by treating multiple physical switches as a single logical unit.
5. Security Features: The switch provides various security features to protect the network and connected devices. It supports features such as Access Control Lists (ACLs), DHCP snooping, Dynamic ARP Inspection (DAI), IP Source Guard, and Secure Shell (SSH) Protocol.
6. Layer 2 and Layer 3 Capabilities: The switch supports Layer 2 switching functionality, including VLANs, Spanning Tree Protocol (STP), and Rapid Spanning Tree Protocol (RSTP). It also offers basic Layer 3 IP routing capabilities, allowing for inter-VLAN routing and static routing.
7. Network Management: The switch can be managed using Cisco’s Command-Line Interface (CLI), as well as through a web-based graphical user interface (GUI). It also supports Cisco Prime Infrastructure for centralized network management.
8. Quality of Service (QoS): The switch supports advanced QoS features, allowing you to prioritize certain types of network traffic over others. This helps ensure that critical applications receive the necessary network resources and bandwidth for optimal performance.
9. Energy Efficiency: The Cisco Catalyst WS-C2960X-48FPS-L switch is designed to be energy-efficient. It utilizes Cisco’s Energy Efficient Ethernet (EEE) standard, which reduces power consumption during periods of low network activity.
10. Redundancy and High Availability: The switch supports features like redundant power supplies and fans, ensuring that the network remains operational even in the event of a hardware component failure. It also offers Virtual Router Redundancy Protocol (VRRP) for providing default gateway redundancy.
11. IPv6 Support: The switch is compatible with Internet Protocol version 6 (IPv6), which is the latest version of the IP protocol. This ensures future-proofing and support for IPv6 addressing schemes.
12. Security and Access Control: The Cisco Catalyst WS-C2960X-48FPS-L switch provides advanced security features to protect the network infrastructure. It supports features such as 802.1X authentication, MAC address-based port security, and port-based access control lists (ACLs) to restrict unauthorized access to the network.
13. VLAN Support: The switch allows you to configure and manage Virtual LANs (VLANs). VLANs enable you to logically separate the network into different broadcast domains, providing improved network security, flexibility, and scalability.
14. Network Resiliency: The switch supports various protocols and technologies for enhancing network resiliency and availability. These include Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP), and Cisco’s Flexlink technology for fast link failover.
15. Cisco Smart Install: The switch supports Cisco Smart Install, a zero-touch deployment and replacement feature that simplifies the initial deployment and configuration of switches in a network. It allows for automated configuration and image installation, reducing the time and effort required for network setup.
16. Scalability: The Cisco Catalyst WS-C2960X-48FPS-L switch can be easily integrated into existing network infrastructures, and it provides scalability for future growth. It supports up to 1,000 VLANs and can handle a large number of connected devices.

Specification of Cisco Catalyst WS-C2960X-48FPS-L Switch:

• Product Code: WS-C2960X-48FPS-L
• Enclosure Type: Rack-mountable – 1U
• Feature Set: LAN Base
• Uplink Interfaces: 4 x 1G SFP
• Ports: 48 x Ethernet 10/100/1000 Gigabit ports
• Maximum stacking number: 8
• Stack bandwidth: 80G
• Forwarding Bandwidth: 108Gbps
• Switching Bandwidth: 216Gbps
• RAM: 512MB
• Flash Memory: 128MB
• Dimensions: 44.5 cm x 27.9 cm x 4.5 cm
• Package Weight: 5.8Kg
