Network Switch:

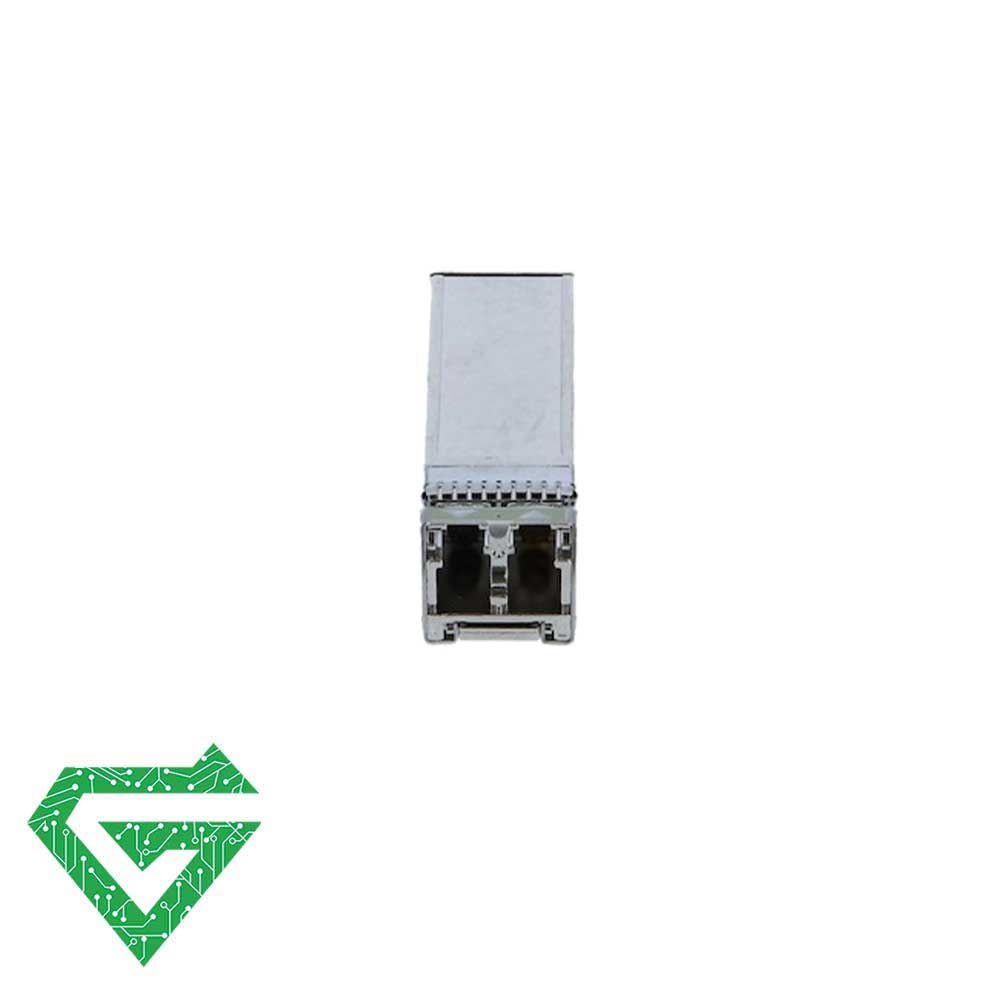

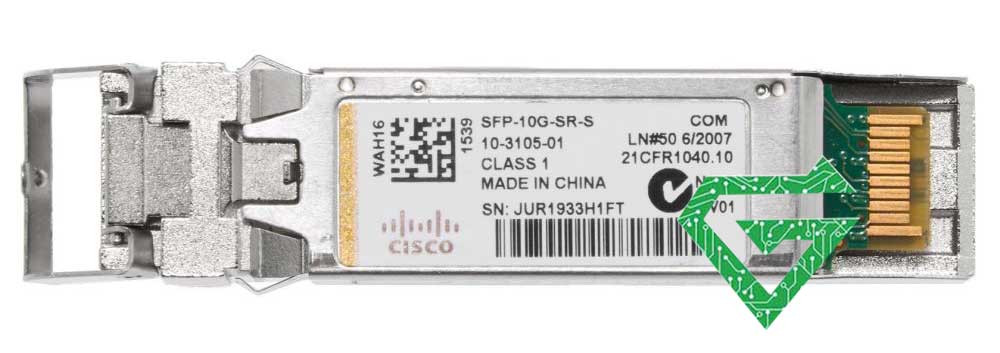

Cisco Fiber Module SFP-10G-SR-S:
The Cisco Fiber Optic Module SFP-10G-SR-S is a 10 Gigabit Ethernet SFP+ transceiver module designed for short-range connections over multimode fiber (MMF). Operating at an 850 nm wavelength, it supports 10GBASE-SR standard and provides a transmission distance of up to 300 meters on OM3 fiber and 400 meters on OM4 fiber, using an LC duplex connector.
It is a hot-pluggable, cost-effective “S-class” module, optimized for Ethernet-only applications without extra SONET/OTN features, making it more affordable than standard models like the SFP-10G-SR. Commonly used in data centers and enterprise networks, this module is ideal for high-speed interconnections between switches, servers, and storage devices within a building or campus environment.
This module designed by Cisco company and you can buy it in network equipment market with 1-year Atech warranty. If you want to know more about network module specially cisco fiber optical module, you can contact us.
Introducing Cisco Fiber Module SFP-10G-SR-S:
The Cisco SFP-10G-SR-S fiber optic module is a Cisco fiber optic module with a 10G transceiver in fiber optics and has a link length of up to 400 meters. This module supports a maximum link length of up to 300 meters using (OM3) and up to 400 meters using OM4.
This module is easy to install and can be used over long distances and provides the best possible connection between two switches. The cable type of this fiber optic module is MMF cables and is equipped with a duplex LC connector for connecting cables.
The Cisco SFP-10G-SR-S module has a wavelength of 850nm and a maximum speed of 10.3125Gbps. This high-quality 850nm, 10GBASE-SR+ compliant Cisco SFP-10G-SR-S transceiver is a cost-effective solution that provides high bandwidth and transmission rates over short distances. Each transceiver is 100% optically inspected and compatibility tested before shipment.
Specifications of Cisco Fiber Module SFP-10G-SR-S:
- Type: SFP+ (Small Form-Factor Pluggable Plus)
- Standard: IEEE 802.3ae 10GBASE-SR
- Application: Short Range (SR) for 10 Gigabit Ethernet
- Wavelength: 850 nm (short wavelength)
- Connector Type: LC duplex
- Fiber Type: Multimode Fiber (MMF)
- Distance Support: Up to 26 m on OM1 (62.5 μm) | Up to 33 m on OM2 (50 μm) | Up to 300 m on OM3 | Up to 400 m on OM4
- Data Rate: 10Gbps
- Hot-Pluggable: Yes
- Forward Error Correction (FEC): Not required for standard distances
- Digital Optical Monitoring (DOM): Supported (real-time diagnostics)
- Power Consumption: Approximately 1 W
- Operating Temperature: 0°C to 70°C (Commercial)
- Storage Temperature: -40°C to +85°C
- Works with Cisco devices supporting SFP+ slots
- “S” Class: Ethernet-only, no support for SONET/SDH or OTN (which standard versions sometimes support)
- Connectivity: Wired
Other Recommended:
| Cable Type |
MMF |
|---|---|
| Connector |
LC duplex |
| Wavelength |
850nm |
| Data Transfer Rate |
10Gbps |
| Maximum Distance |
Up to 26 m on OM1 (62.5 μm) | Up to 33 m on OM2 (50 μm) | Up to 300 m on OM3 | Up to 400 m on OM4 |
| Monitoring |
DOM |
| Connectivity Technology |
Wired |
| Operation temperature |
min: 0° & max: 70° |
