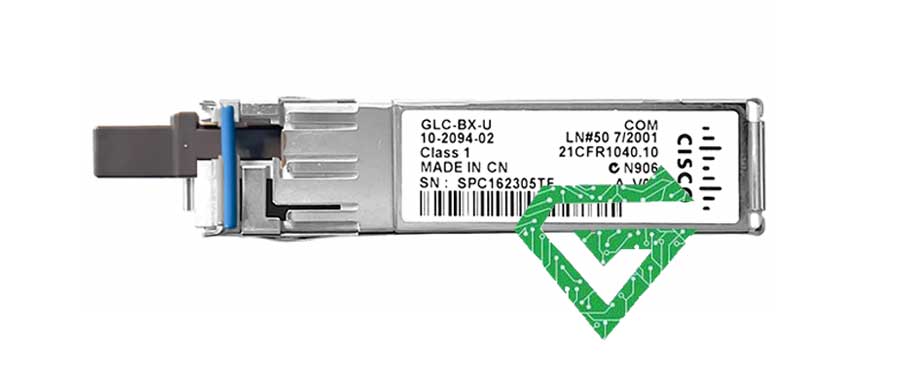

Cisco Fiber Optic Module GLC-BX-U:
The Cisco Fiber Optic Module GLC-BX-U is a 1 Gigabit Bi‑Directional (BiDi) SFP transceiver that enables duplex signaling over a single strand of single‑mode fiber (SMF). It operates as the “U” (upstream) side of a paired link transmitting at 1310 nm and receiving at 1490 nm and must be paired with a GLC-BX-D (downstream) module to complete the connection.
Designed for 1000BASE‑BX10 applications, this compact, hot-pluggable SFP supports up to 1.25 Gbps data rates and provides reliable network performance across distances of up to 10 km over SMF.
The GLC-BX-U module uses the 1000BASE-BX10 standard, which provides an effective data transfer rate of 1.0 Gbpsfor actual payload. However, due to encoding and signaling overhead, the total physical line rate reaches 1.25 Gbps.
-
Line Rate (Physical Transmission Rate): 1.25 Gbps
-
Payload Data Rate (Effective Data Throughput): Approximately 1.0 Gbps
It features the industry-standard SFP MSA SFF‑8472, including Digital Optical Monitoring (DOM) capabilities to monitor optical power, temperature, and module health.
Operating in standard commercial environments (0 °C to 70 °C) and fitted with an LC simplex connector, the GLC‑BX‑U is a direct OEM Cisco product, fully compatible with cisco switches, routers, and other networking hardware.
This module designed by Cisco company and you can buy it in network equipment market with 1-year Atech warranty. If you want to know more about network module specially cisco fiber optical module, you can contact us.
Features of Cisco Fiber Optic Module GLC-BX-U:
- Form Factor: SFP (Small Form-factor Pluggable), hot-swappable
- Function: Bi‑Directional (Tx 1310 nm / Rx 1490 nm)
- Standard: 1000BASE-BX10-U
- Data Rate: Up to 1.0 Gbps
- Reach: Up to 10 km over single-mode fiber (SMF)
- Connector: LC simplex
- Monitoring: DOM (Digital Optical Monitoring) per SFF‑8472
- Temperature Range: 0 °C to 70 °C (commercial-grade)
- Compatibility: Cisco OEM; works on Cisco network equipment
Uses of Cisco Fiber Optic Module GLC-BX-U:
- Deploying long-distance uplinks between sites or buildings using a single fiber strand to reduce cabling costs.
- Ideal for enterprise, campus, or metro access networks requiring 1 Gbps bandwidth.
- Since it’s an OEM Cisco module, it integrates seamlessly into Cisco gear and retains Cisco Support/SmartNeteligibility.
Other Recommended:
Cisco Fiber Optic Module GLC-10G-BXU-I
| Connector Type |
LC |
|---|---|
| Wavelength |
Bi‑Directional (Tx 1310 nm / Rx 1490 nm) |
| Data Transfer Rate |
1Gbps |
| Maximum Distance |
10km |
| Operation temperature |
min: 0° & max: 70° |
| Monitoring |
DOM |
