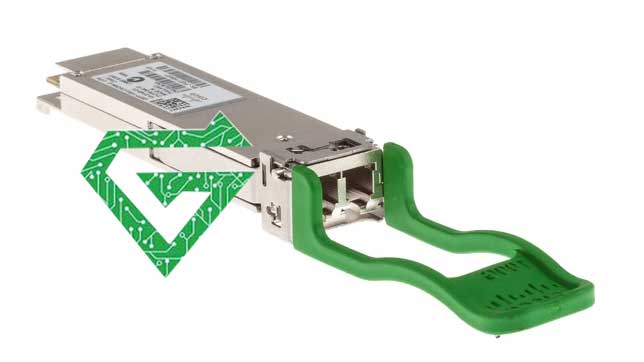

Cisco Fiber Optic Module QSFP-100G-SM-SR:
The Cisco Fiber Optic Module QSFP-100G-SM-SR is a high-performance 100 Gigabit Ethernet transceiver module designed for data center and enterprise networking environments. This network module utilizes Coarse Wavelength Division Multiplexing (CWDM4) technology to transmit data over single-mode fiber (SMF) using four distinct wavelengths and at a distance of 100 meters, it has a wavelength of 1271, 1291, 1311, 1331 nm.
The Cisco fiber optic module has an LC connector and complies with the IEEE 802.3ba standard. This fiber optic module is manufactured in dimensions of 8.5×72×18 mm with a weight of 0.04 kg and is sold at an affordable price in the network equipment market.
The Cisco QSFP-100G-SM-SR SFP Module is a 103Gbps transceiver module designed for optical communication applications in accordance with the 100GBASE-CWDM4 IEEE P802.3ba standard. This Cisco fiber optic module converts 4 input channels of 25Gbps electrical data into 4 optical CWDM channels and then converts them into a single channel for 103Gbps optical transmission. Conversely, on the receiver side, the Cisco module converts a 103Gbps optical input into 4 channels of CWDM optical signals and then converts them into 4 channels of electrical data output.
Specifications of Cisco Fiber Optic Module QSFP-100G-SM-SR:
- Form Factor: QSFP28
- Data Rate: 100 Gbps
- Optical Reach: Up to 2 kilometers over G.652SMF
- Connector Type: Duplex LC
- Wavelengths: 1271nm, 1291nm, 1311nm, and 1331nm
- Optical Link Budget: 4.2 dB, accommodating typical data center patch panel losses
- Operating Temperature Range: +10°C to +60°C
- Interoperability: Fully interoperable with Cisco’s QSFP-100G-CWDM4-S modules
Other Recommended:
| Cable Type |
SMF |
|---|---|
| color |
Green |
| Core Size (Microns) |
G.652 |
| Data Transfer Rate |
100Gbps |
| Wavelength |
1271nm, 1291nm, 1311nm, and 1331nm |
| Connector Type |
Duplex LC |
| Maximum Distance |
Up to 2 kilometers |
| Operation temperature |
+10°C to +60°C |
| Power Consumption |
3.5W |
| Dimension |
8.5×72×18 mm |
