Network Switch:

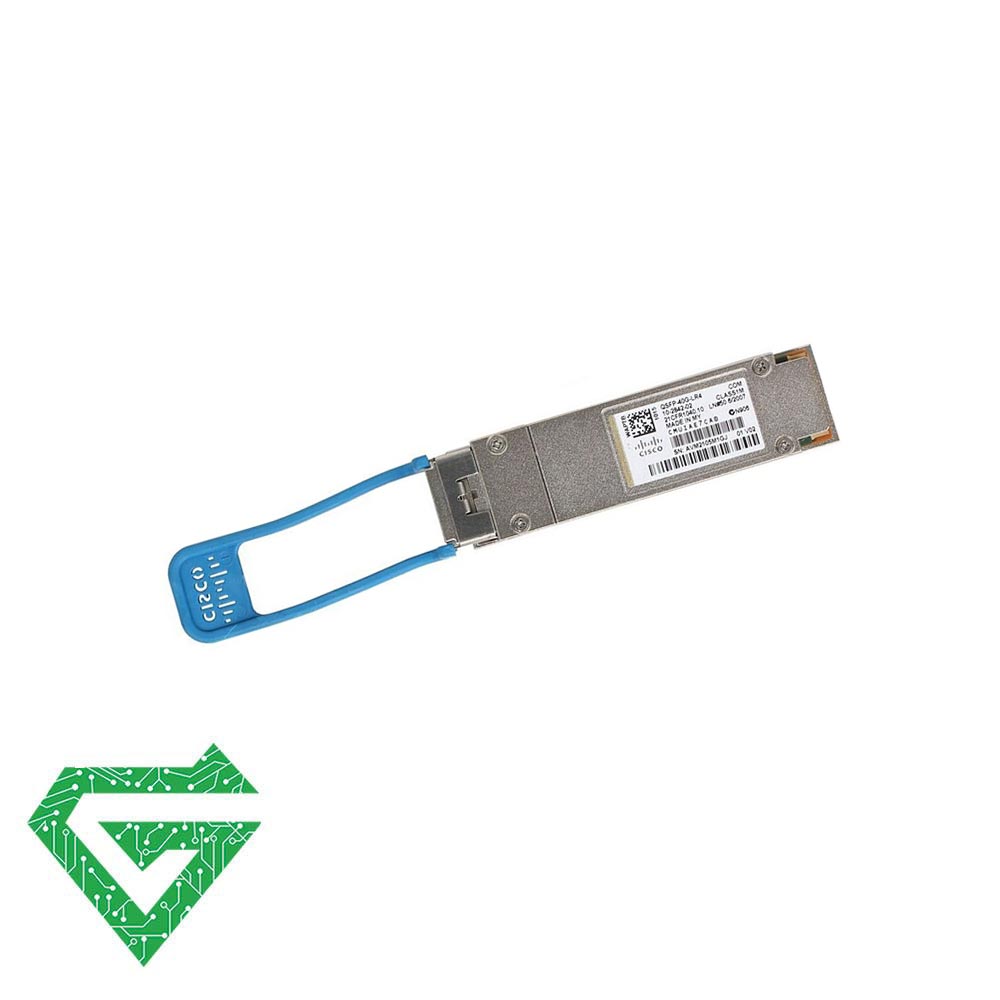

Cisco QSFP-40G-LR4 Module:
Cisco QSFP-40G-LR4 Module is a optic fiber module that connects network devices with 40Gbps speed. This network module uses optical fiber technology for sending and receiving data remotely. Cisco QSFP-40G-LR4 Module uses for long distance and connecting devices such as network router and other network equipment together.
This Cisco fiber optic module used in data center networks and connecting network. most of businesses use this Cisco module for different networks that need data management and can send data to 10 km distance with 1310 nm wavelength. The speed of sending data in Cisco QSFP-40G-LR4 Module can be 44 GB.
You can buy this product in network equipment market, if you need to consult about equipping your network, contact with Atech expert sellers.
Specification of Cisco QSFP-40G-LR4 Module:
- Speed rate: 40G
- Wavelength: 1310nm
- Does not support FCoE
- Cable type: SMF
- Cable distance: 10km
- Power consumption: 3.5 Watts
- Pull Tab Color: blue
- Laser Class: 1
- Connector Type: LC
- Commercial temperature: 0 to 70°C (32 to 158°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
Other Recommended:
| Cable Type |
SMF |
|---|---|
| color |
Blue |
| Data Transfer Rate |
40G |
| Wavelength |
1310nm |
| Maximum Distance |
10km |
| Power Consumption |
3.5 W |
| FCoE |
Does not support |
| Operation temperature |
min: 0° & max: 70° |
| Dimension |
13.5 x 18.4 x 72.4 mm |
