Network Switch:

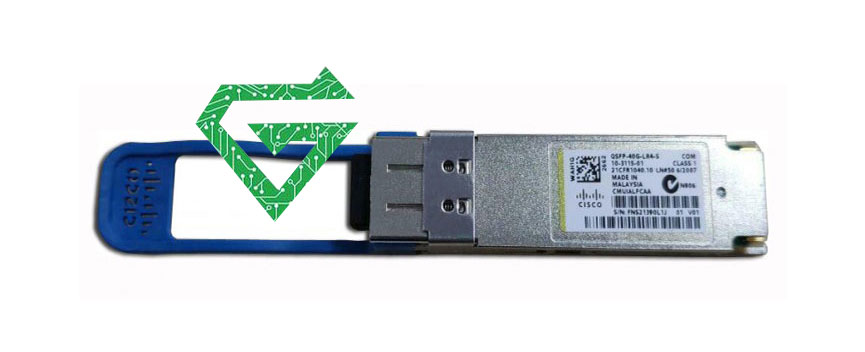

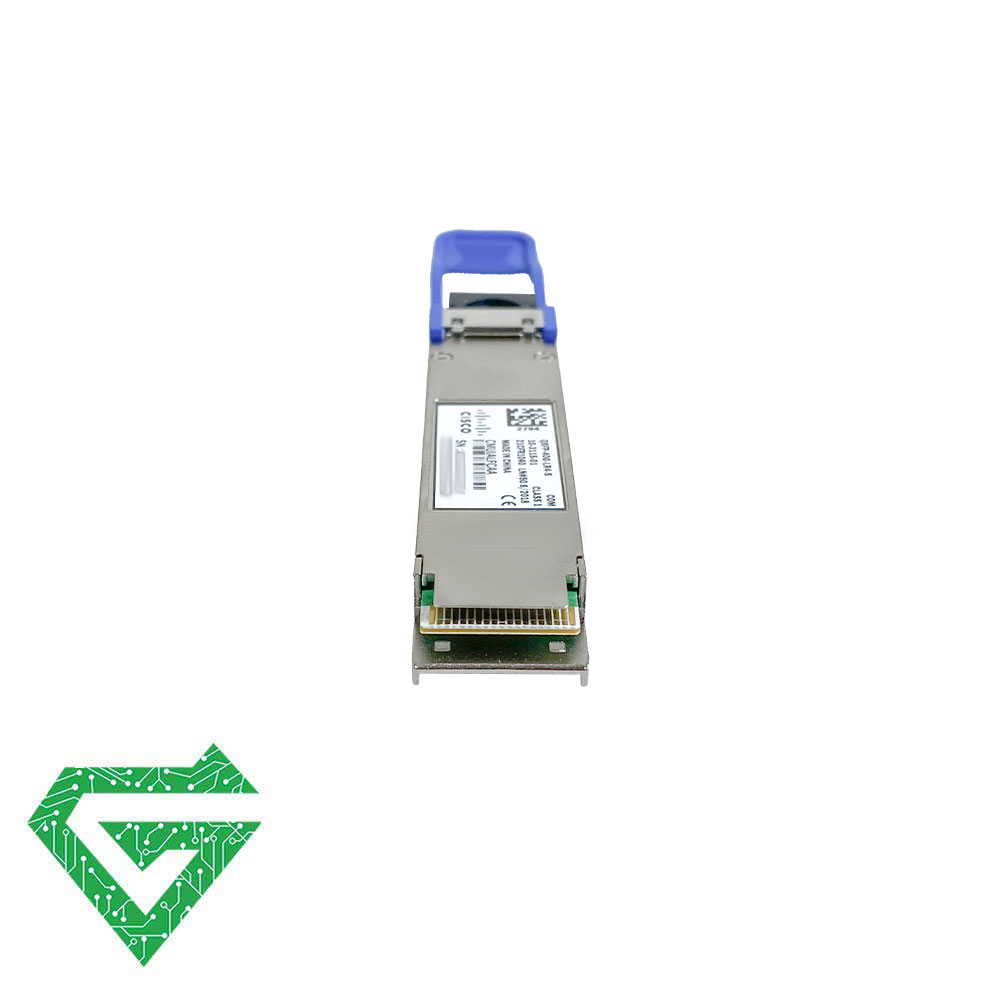

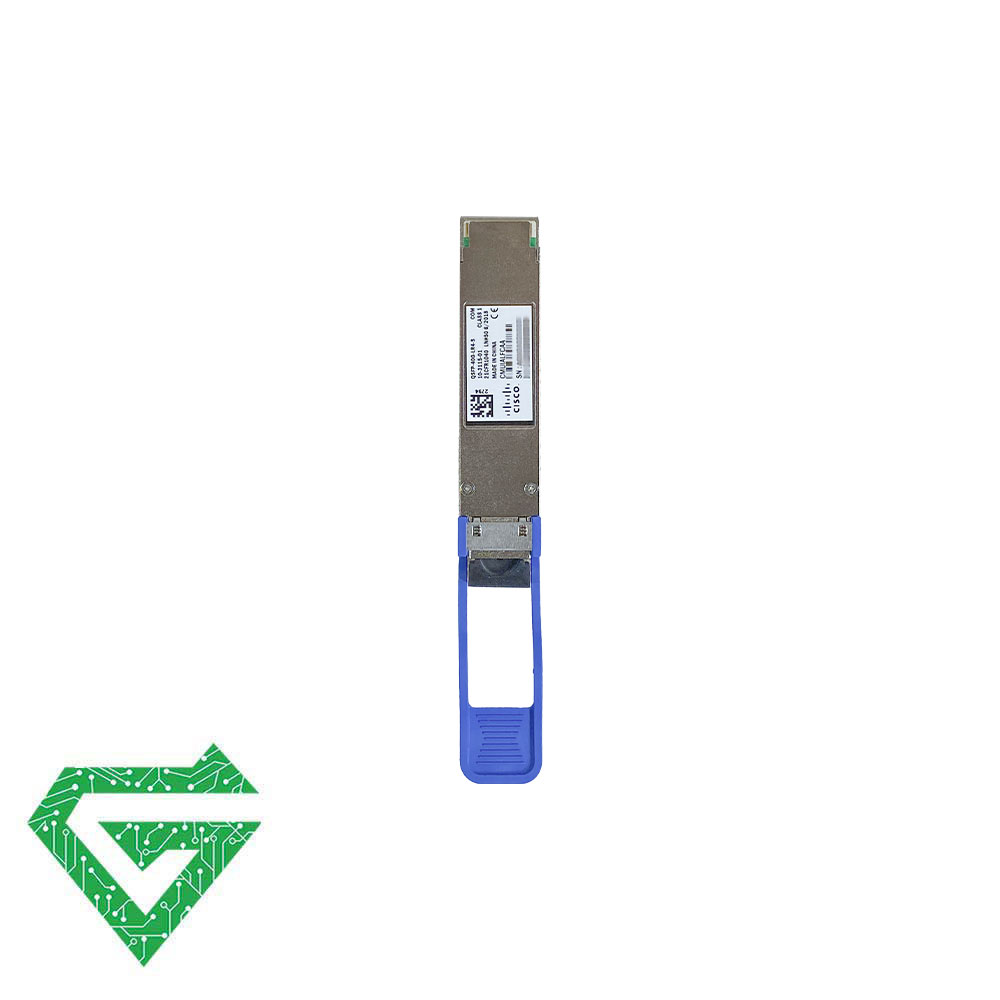

Cisco QSFP-40G-LR4-S Module:
Cisco QSFP-40G-LR4-S Module can transmit data at the highest speed of 44.6Gbps up to 10 km over SMF. This network module is fully compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-LR4, OTU3 C4S1-2D1 standards, and also fully supports OTN OTU3, 40G Ethernet, Infiniband, Fiber Channel, SATA/SAS3, MSA Compliant protocols.
Cisco fiber optic module model QSFP-40G-LR4-S is designed for long distances, which can support distances up to 10 km. The core size of this QSFP-40G-LR4-S optical transceiver module is G.652 microns and its power consumption is 3.5 watts.
The Cisco QSFP-40G-LR4 module is a QSFP module and is also used for Cisco switch equipment and routers. This Cisco module is designed in dimensions of 72.4 x 18.4 x 13.5 mm and is suitable for single-mode fiber optic cables (SMF) and sells in network equipment market.
Specification of Cisco QSFP-40G-LR4-S Module:
- Dimensions: 72.4 × 18.4 × 13.5 mm
- Fiber Optic Module Type: QSFP
- Wavelength: 1310nm
- Cable Type: Single Mode SMF
- Core Size: G.652 Micron
- Power Consumption: 3.5 Watts
- Maximum Distance: 10 km
- Data Transfer Rate: 40Gbps
- Pull Tab Color: Blue
- Commercial temperature: 0 to 70°C (32 to 158°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
Other Recommended:
| Data Transfer Rate | 40Gbps |
|---|---|
| Cable Type | SMF |
| Maximum Distance | 10 km |
| Wavelength | 1310nm |
| Power Consumption | 3.5 Watts |
| Commercial temperature | 0 to 70°C (32 to 158°F) |
| Storage temperature | -40 to 85°C (-40 to 185°F) |
| Hot Swapable ability | Yes |
| Dimensions | 72.4×18.4×13.5mm |
