Network Switch:

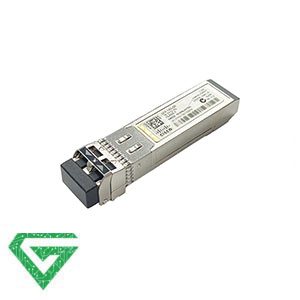

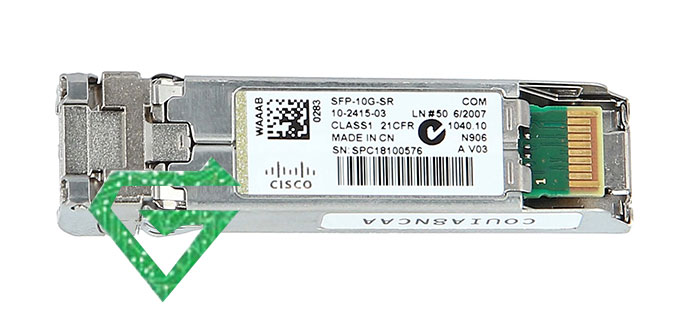

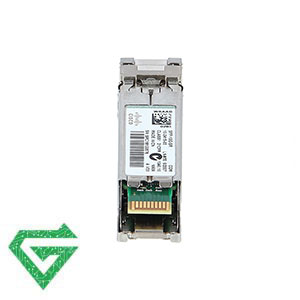

Cisco SFP-10G-SR Module:
The Cisco SFP-10G-SR fiber optic module is one of the products of Cisco that is offered and sold in the network equipment market. The Cisco SFP-10G-SR fiber optic module is actually a 10 Gigabit Multimode fiber optic transceiver and covers up to 300 meters using 4700 Mhz KM MMF (OM3).
Cisco +10GBASE SFP modules can provide different speeds up to 10 Gigabit Ethernet to the data center, enterprise wiring cabinet and transport applications.
As we said, this Cisco fiber optic module supports short distances up to 300 meters at very good speeds. This model of the network module uses an LC/PC connector. Other features of the Cisco fiber optic module include the ability to manage optical digital for quick recognition. The Cisco SFP-10G-SR module can perform at its highest performance in high temperature environments.
The Cisco SFP-10G-SR module is one of the examples of Cisco fiber optic modules that connect to modular switches in the network and add features to them. By adding each network module to modular switches, it is possible to add ports and add users to it.
The Cisco SFP-10G-SR module allows you to connect various types of fiber optics and copper wires to Cisco routers and switches that support SFP fiber optic modules. The Cisco SFP-10G-SR module is compatible with 10Gbase-SR and all routers and switches with SFP ports and is known by the part number SFP-10G-SR.
specification of Cisco SFP-10G-SR Module:
- They have the smallest dimensions in 10G modules.
- Has a Hot Swappable input / output device that connects to a Cisco Ethernet switch SFP+ port (with Hot Swappable capability that does not require power-down during installation or replacement)
- Has digital optical monitoring capability
- Ability to send and receive data using XENPAK 10GBASE, 10GBASE X2 and GBASE XFP10 interfaces on the same link
- Has a quality control certificate (ID) to identify modules that have been approved by Cisco.
- Part Number SFP-10G-SR
- Product Type: Cisco Fiber Optic Module +SFP
- Form Factor Plug-in module
- Speed: 10 Gbps
- Wavelength (nm): 850 nm
- Cable Type: MMF
- Power Consumption: 1 Watt
Other Recommended:
| Cable Type |
MMF |
|---|---|
| Wavelength |
850nm |
| Core Size |
62.5 Microns |
| Bandwidth |
200 (OM1) |
| Cable Distance |
33m |
| color |
Beige |
| Power Consumption |
1w |
| Data Transfer Rate |
10Gbps |
