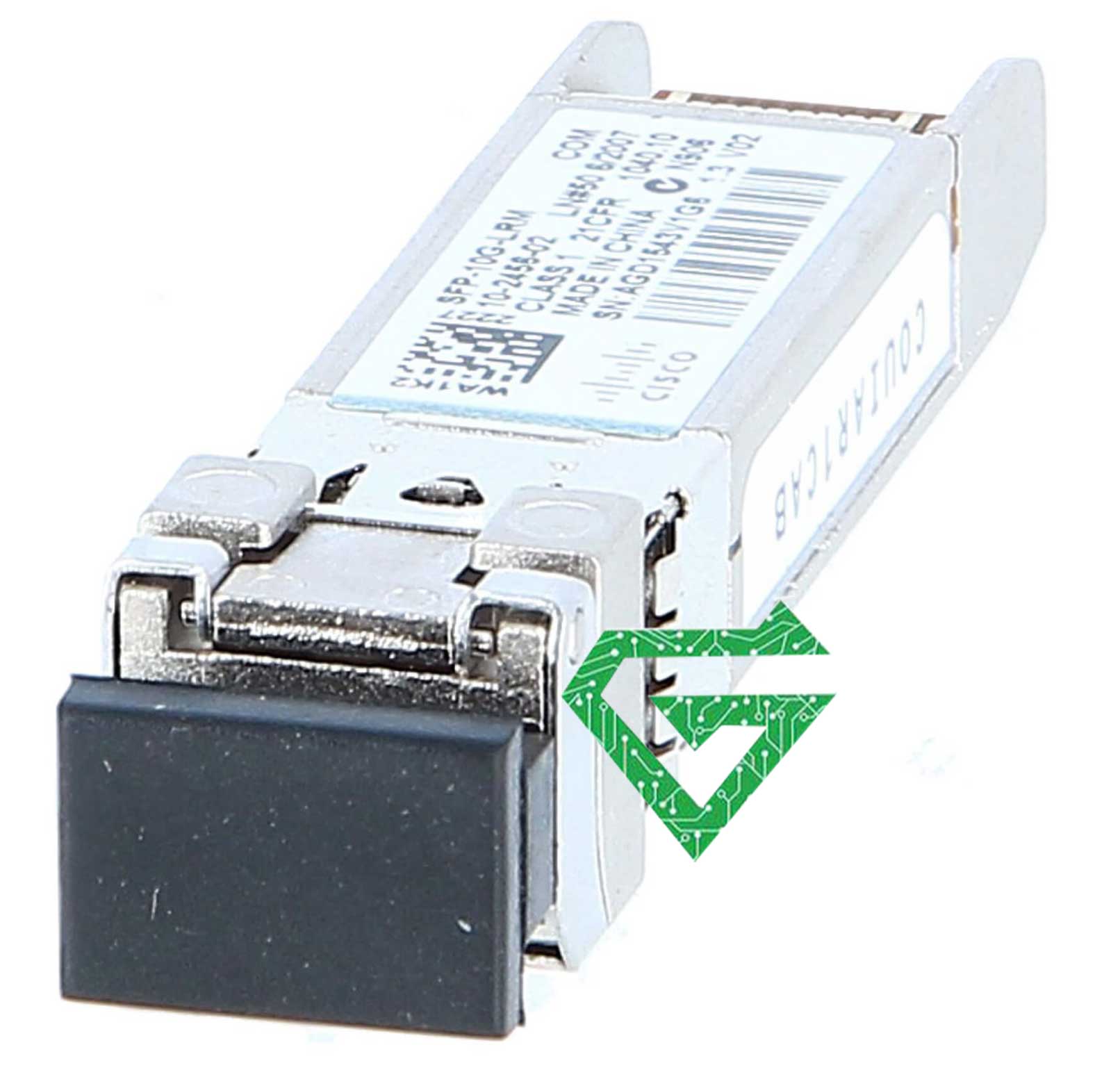

Cisco Fiber Optic Module SFP-10G-LRM:
The Cisco fiber optic module SFP-10G-LRM is a 10 Gigabit Ethernet SFP+ transceiver module designed for use in Cisco switches and routers. It supports the 10GBASE-LRM standard, which allows 10Gbps data transmission over multimode fiber (MMF) for distances up to 220 meters on legacy OM1/OM2 fibers and up to 300 meters on OM3 fiber.
This module operates at a wavelength of 1310 nm, uses LC duplex connectors, and is hot-swappable, making it easy to install or replace without shutting down the network device. It also features Digital Optical Monitoring (DOM) for real-time parameter tracking like temperature, voltage, and optical power. The SFP-10G-LRM is commonly used to extend 10G connectivity over existing multimode fiber infrastructures without the need for expensive fiber upgrades.
This module designed by Cisco company and you can buy it in network equipment market with 1-year Atech warranty. If you want to know more about network module specially cisco fiber optical module, you can contact us.
Introducing Cisco Fiber Optic Module SFP-10G-LRM:
The Cisco SFP-10G-LRM is a hot-swappable 10 Gigabit Ethernet SFP+ transceiver designed for high-speed data transmission over multimode fiber. It supports the 10GBASE-LRM standard, providing 10Gbps throughput with a maximum link distance of 220 meters on OM1/OM2 fiber and up to 300 meters on OM3 fiber, making this Cisco module ideal for upgrading legacy multimode fiber networks.
Operating at a 1310 nm wavelength, it uses LC duplex connectors and supports Digital Optical Monitoring (DOM) for real-time diagnostics of parameters such as temperature, voltage, and optical power.
The module is optimized for enterprise and data center environments, with a typical power consumption of less than 1 watt and an operating temperature range of 0°C to 70°C. Designed for reliability and flexibility, it ensures seamless integration into Cisco networking devices while maintaining energy efficiency and high performance.
Features of Cisco Fiber Optic Module SFP-10G-LRM:
- Type: SFP+ 10 Gigabit Ethernet transceiver
- Standard: 10GBASE-LRM
- Data Rate: 10Gbps
- Fiber Type: Multimode fiber (MMF)
- Maximum Distance: Up to 220 m on OM1/OM2 fiber | Up to 300 m on OM3 fiber
- Wavelength: 1310 nm
- Connector Type: LC duplex
- Hot-swappable: Yes
- Digital Optical Monitoring (DOM): Supported
- Power Consumption: < 1 W
- Operating Temperature: 0°C to 70°C (32°F to 158°F)
- Compatibility: Cisco switches, routers, and other devices with SFP+ ports
Other Recommended:
| Cable Type |
MMF |
|---|---|
| Data Transfer Rate |
10Gbps |
| Wavelength |
1310nm |
| Maximum Distance |
Up to 220 m on OM1/OM2 fiber | Up to 300 m on OM3 fiber |
| Connector |
LC Duplex |
| Monitoring System |
DOM |
| Power Consumption |
< 1 W |
| Hot-swappable |
Yes |
| Operation temperature |
min: 0° & max: 70° |
