PoE Extender

PoE Extender:

A PoE Extender (Power over Ethernet extender) is a device that extends both data and power over Ethernet cables beyond the standard limit, which is usually about 100 meters (328 feet) for Ethernet connections.

Normally, Ethernet cables can only carry network signals (and power, if it’s PoE) up to that 100m limit. If you need to go farther like connecting a security camera at a distant corner of a building or a Wi-Fi access point across a large area, you can use a PoE extender. It acts a bit like a relay station:

• It receives the PoE signal (both power and data).

• Boosts it.

• And sends it farther down another Ethernet cable.

Some PoE extenders even allow you to daisy-chain multiple extenders to cover very long distances. This product is a network switch accessory that designed by different companies and sold in network equipment.

Features of PoE Extender:

• 4 ports IEEE802.3af/at Outdoor PoE Extender
• No power adapter is required and up to 1000ft transmission distance
• Multiple levels cascade support
• Full Gigabit Ports
• Port-based VLAN

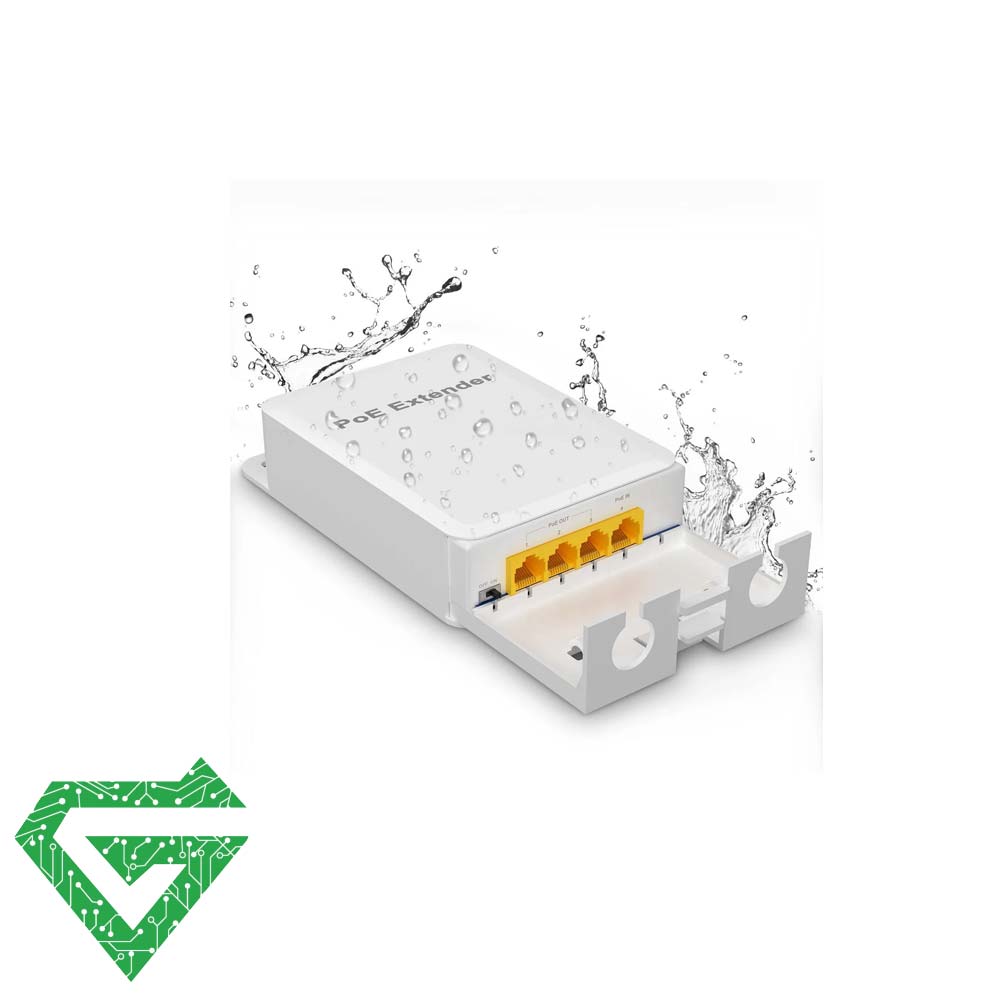

• IP55 waterproof
• wall mountable
• Plug and play
• Distance: 100m
• Bandwidth: 10Gbps
• Forwarding rate: 7.4Mpps
• PoE Pin: 1/2+, 3/6-
• PoE Out Ports: 4×1000M
• PoE In Ports: 1×1000M
• Max Input Power (1-3): 30W
• Max Input Power port (4): 60W
• Max Output Power (5): 90W
• IP55 Waterproof
• dimension: 148×34×98mm

How to install PoE Extender on the wall?

1. Mark the wall and nail it up
2. Hang the hole in the middle of the Extender on the nail
3. Fix the two sides with nails

More specification of  PoE Extender:

• Extends Ethernet + Power: Boosts data and power signals beyond 100 meters (often up to another 100 meters per extender).

• No External Power Needed: Most PoE extenders are powered directly by the incoming PoE, so you don’t need to plug them into a separate power outlet.

• Easy Installation: Just plug-and-play,  no special configuration required.

• Supports Different PoE Standards: Compatible with PoE (IEEE 802.3af), PoE+ (802.3at), and sometimes PoE++ (802.3bt).

• Durability: Many are rugged, waterproof (IP-rated), and designed for outdoor use.

• Pass-Through Power: Some models allow connecting multiple PoE devices (like two cameras) using a single extender.

• Low Latency: Keeps the network performance stable even after boosting the signal.

• Compact Size: Small and lightweight, easy to hide or mount anywhere.

• Daisy-Chaining: Some extenders allow chaining multiple units together for really long distances (e.g., 200–400 meters).
