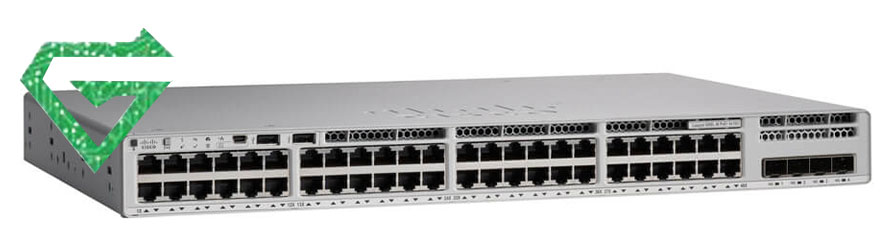

Cisco Catalyst WS-C9200L-48T-4X-E Switch

Cisco Catalyst WS-C9200L-48T-4X-E Switch:

The Cisco C9200L-48T-4X-E ​​switch is one of the 9200 series products of Cisco that is sold in the network equipment market. This series of switches can practically be used to replace the 2960 series switches because it has new and innovative software and hardware capabilities.

The 48-port Cisco C9200L-48T-4X-E ​​switch has the ability to understand MAC addresses at layer 2 and IP addresses at layer 3. Therefore, the 9000 series switches are suitable for users who need switches with the features of the Cisco 3850 and 2960 series switches.

Other features of the Cisco 48-port C9200L-48T-4X-E ​​switch are its uplinks. This switch has 4 fixed uplinks with a speed of 10 Gbps. This device also has a Network Essentials license.

The C9200L-48T-4X-E ​​switch has 2 GB of RAM and 4 GB of flash memory and supports Cisco PWR-C5-125WAC power with an input current of 100 to 240 V and a frequency of 50 to 60 Hz.

The operating system that can be installed on this network switch is Cisco IOS XE. This model has the ability to stack and can stack up to eight switches and achieve 80 Gigabit bandwidth performance in the stack.

This Cisco 48-port switch has a switching capacity of 176Gbps and a data transfer rate of 130.95Mpps, and it should be noted that in stack mode, the switching capacity increases to 256Gbps and the data transfer rate increases to 190Mpps.

The MAC address table of this cisco switch covers 16,000 MAC addresses. It also supports 4096 VLAN IDs. Keep in mind that the Catalyst 9200L and 9200CX switches are not supported as Fabric Edge for SD-Access Wireless. Another notable point is that the Catalyst 9200, 9200L, and 9200CX do not support the SD-Access embedded wireless controller.

Regarding stacking capabilities, it is important to know that you cannot stack the 9200L series switches with 9200 or other Catalyst models. Additionally, the Cisco 2960 and 2960XR Series switches cannot be stacked with the Cisco 2960CX Series switches.

You can buy cisco switches in Dubai from Atech.ae, This company supplies network switches wholesale and retail, and the final price is determined based on the time of purchase and the type of warranty. In addition to the reasonable price, Atech.ae, having one of the largest specialized repair shops for Cisco equipment, guarantees the ability to repair and support this product.

Feature of Cisco Catalyst WS-C9200L-48T-4X-E Switch:

• High flexibility with fixed power supply, fans, and uplinks
• High operational efficiency with wide bandwidth and excellent switching capacity with the ability to stack (Stackable) switches up to 80 Gbps
• Optimized dedicated UDAP 2.0 processors
• Advanced security with AES-128 MACsec encryption
• Having some Layer 3 network operational capabilities including OSPF, EIGRP, ISIS, RIP, and Routed access
• Network monitoring using Full Flexible NetFlow
• Ability to use Cisco SD-Access software-defined access
• Simple and fast operation and deployment using automation based on security policies from the network edge to the cloud with Cisco ISE
• Ensure network quality and improve network visibility with Cisco DNA
• Ability to utilize PnP deployment as a simple, secure, and integrated solution
• Based on the operating system Cisco IOS XE expandable and programmable
