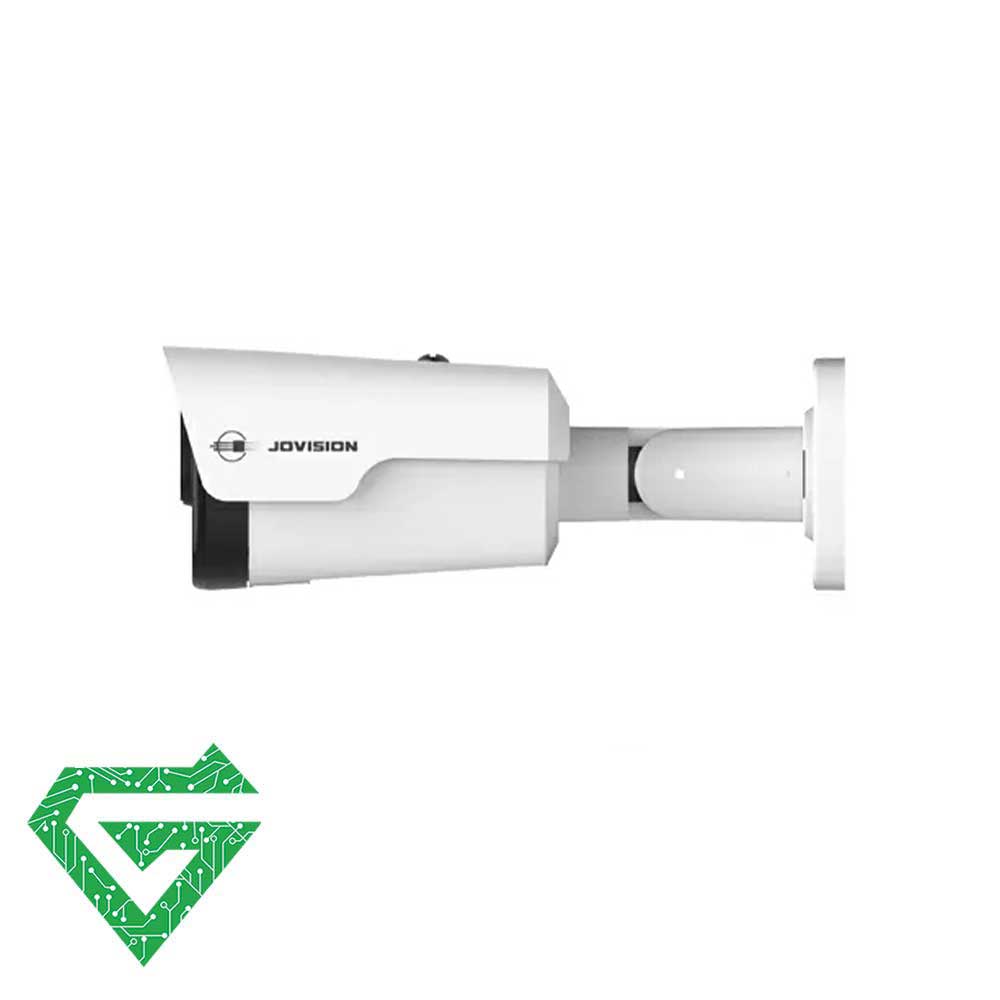

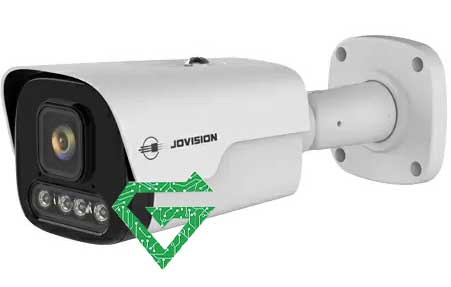

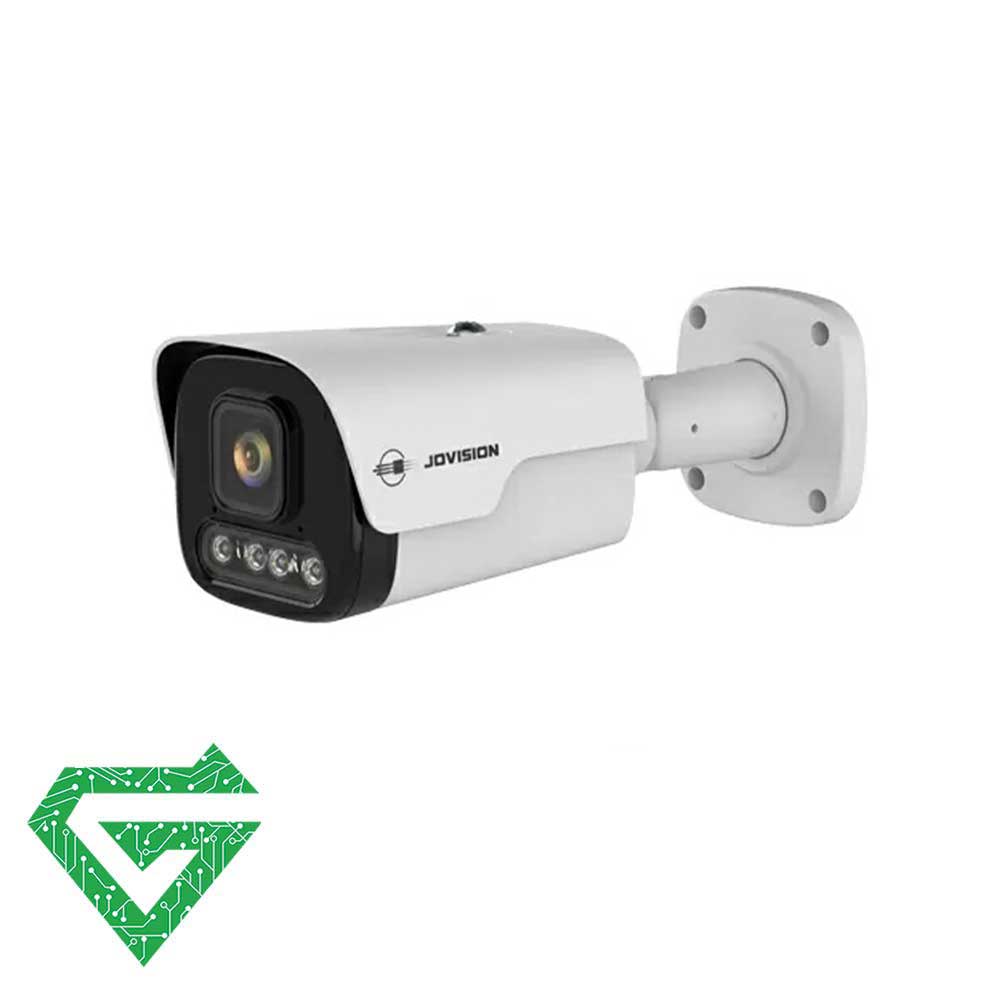

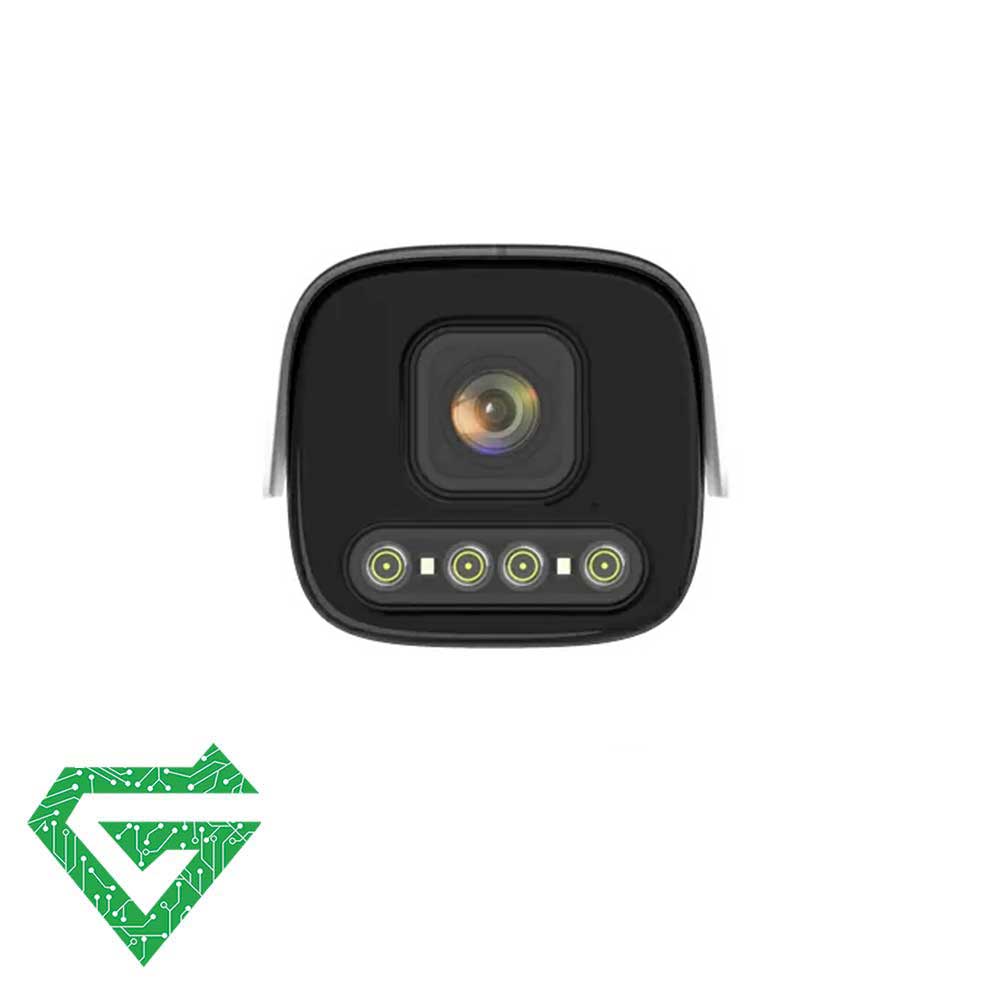

JVS-N518-ZDL 5MP Full-Color AI IP Camera

JVS-N518-ZDL 5MP Full-Color AI IP Camera:

The Jovision CCTV JVS-N518-ZDL 5MP Full-Color AI IP Camera designed by Jovision company for robust surveillance in both residential and commercial settings. It combines advanced imaging technology with intelligent features to deliver clear, full-color video around the clock. you can buy this IP Camera in network equipment market.

Features of JVS-N518-ZDL 5MP:

• Resolution & Sensor: 5.0MP (2560×1792) with a 1/3″ CMOS sensor
• Lens: Motorized varifocal lens (2.7–13.5mm) for remote zoom and focus
• Full-Color Night Vision: Equipped with 4 warm light LEDs and 4 IR LEDs, providing up to 80 meters of IR distance and 60 meters with warm light
• AI Detection: Utilizes AgiSense technology for human, vehicle, and pet detection, as well as leave and road occupation detection
• Audio: Built-in microphone and speaker for two-way communication
• Storage: Supports SD cards up to 512GB
• Power: Supports IEEE802.3af PoE and 12V DC input
• Durability: IP67-rated for weather resistance, operating in temperatures from -30°C to +60°C

Capabilities of JVS-N518-ZDL 5MP Full-Color AI IP Camera:

• Video Quality Catalyst (VQC): Enhances video clarity and stability
• Wide Dynamic Range (WDR): 120dB for balanced exposure in varied lighting
• Smart Motion Detection: Differentiates between humans, vehicles, and pets
• Privacy Masking: Supports up to 8 customizable areas
• Streaming: Triple-stream support with H.264/H.265+ compression
• Network Protocols: Compatible with HTTP, RTSP, ONVIF, and more

Specifications of JVS-N518-ZDL 5MP Full-Color AI IP Camera:

Video:

• Image Sensor: 1/3″ CMOS
• Max Resolution: 2560×1792
• Effective Pixels: 5.0MP
• Compression: H.264 / H.265+
• Framerate: 30fps
• Bitrate:
  • Main Stream: 256Kbps ~ 4096Kbps
  • Sub Stream: 68Kbps ~ 1024Kbps
  • Third Stream: 68Kbps ~ 1028Kbps
• SNR: ≥50dB
• Minimum Illumination: 0 Lux (light ON)

Lens:

• Type: Motorized Varifocal Lens
• Focal Length: 2.7mm–13.5mm
• Field of View:
  • Horizontal: 101.4° to 26.9°
  • Vertical: 53.6° to 15.2°
  • Diagonal: 118.7° to 30.5°

Smart Functions:

• Human, Vehicle, Pet Detection
• Leave Detection, Road Occupation Detection
• Smart Motion Detection
• Email Alarm, Client Alarm

Image Features:

• Auto Exposure Control
• Auto White Balance
• Auto Gain Control
• Digital 3D Noise Reduction
• Smart Defog
• Wide Dynamic Range (WDR) 120dB
• Night Vision Optimization
• Image Settings: Saturation, Brightness, Contrast, Sharpness Adjustment
• Image Styles: Standard, Soft, Transparent
• Day/Night Mode: Auto, Always Black & White, Always Color, Scheduled Color
• Privacy Masking: Up to 8 Areas
• Screen Mirroring and Flipping

Audio:

• Built-in Microphone and Speaker
• Audio Codec: G.711U / G.711A
• Audio Input / Output Interface: Supported

Storage:

• MicroSD Card Support: Up to 512GB

Networking:

• Ethernet: 10/100Mbps
• Network Protocols: HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
• Access Protocols: ONVIF Standard, Public Cloud
• Network Transmission: CloudSEE 2.0
• Fusion Cloud Platform: Supported
• Streams: Triple Stream
• Browser Compatibility: IE8+, Chrome18+, Firefox5.0+, Safari5.02+
• User Access: Up to 13 Users
• Mobile App Support: iOS and Android

Illumination:

• Lights: 4 Warm Light LEDs + 4 IR LEDs
• IR Distance: Up to 80 meters
• Warm Light Distance: Up to 60 meters

General:

• Waterproof Rating: IP67
• Power Supply: DC12V/2A or PoE (IEEE802.3af)
• Power Consumption:
  • <6W (Day)
  • <12W (Night)
• Operating Temperature: -30°C ~ +60°C
• Humidity: 10% ~ 90% RH
• Material: Metal + Plastic
• Color: Black and White
• Dimensions: 103 × 91 × 255mm
• Weight: 732g
• Installation: Wall or Ceiling Mounting
