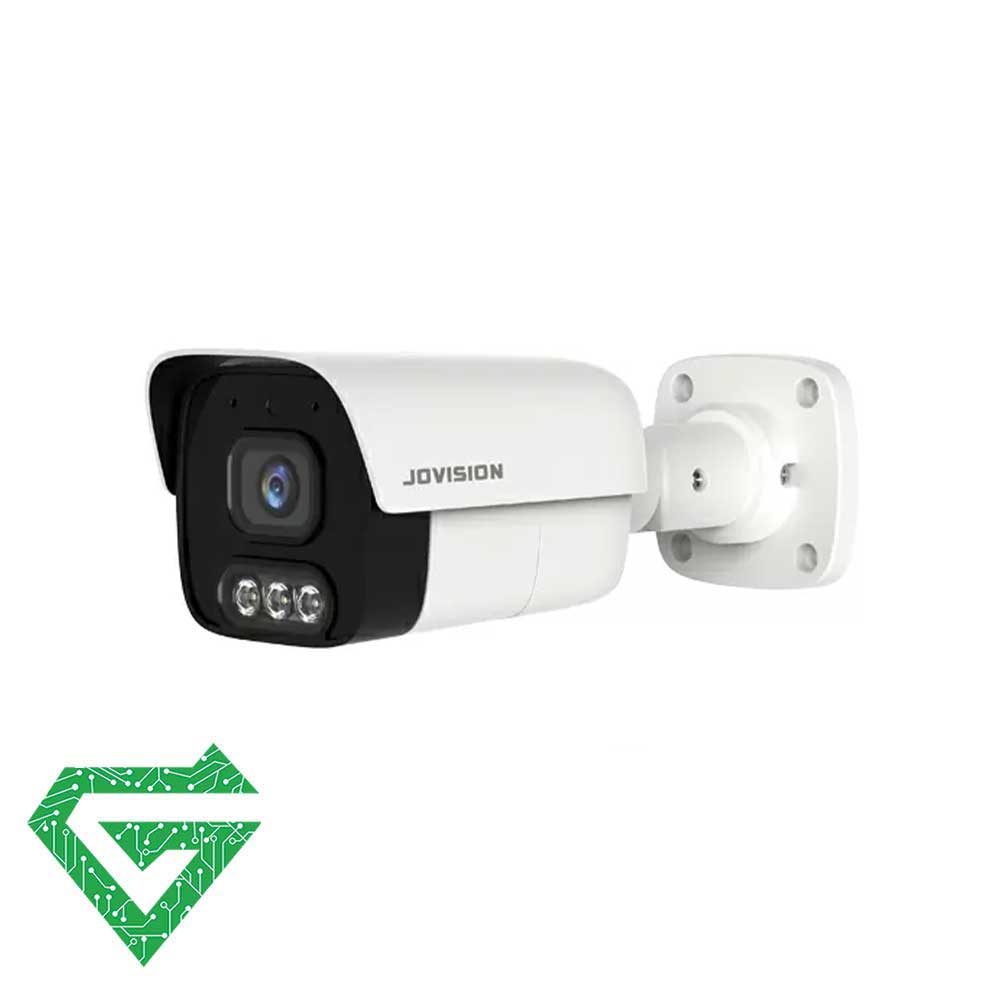

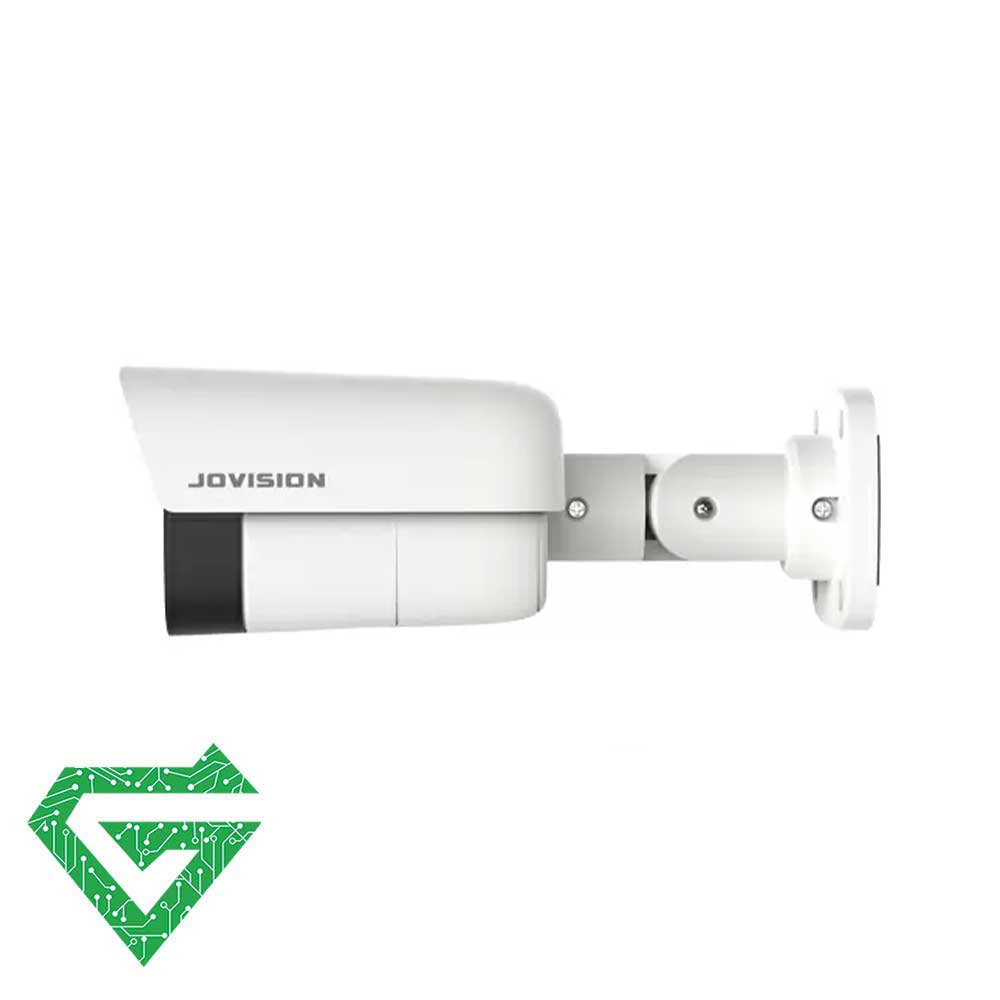

JVS-N917-YDL 3.0MP Full-Color IP Camera:
The Jovision CCTV JVS-N917-YDL is a 3.0MP Full-Color Video & Audio IP Camera developed by Jovision Technology Co., Ltd., designed for advanced security surveillance with intelligent features and high-definition imaging. you can buy this IP Camera in network equipment market.
Features of JVS-N917-YDL 3.0MP Full-Color IP Camera:
- High-Resolution Imaging: Delivers 3.0MP resolution (2304×1296) using a 1/2.9″ CMOS sensor, ensuring clear and detailed video footage.
- Full-Color Night Vision: Equipped with 3 white LEDs and 3 infrared LEDs, it provides full-color video even in low-light conditions, with an IR distance of up to 30 meters.
- Two-Way Audio: Built-in microphone and speaker facilitate real-time communication, allowing users to listen and speak through the camera.
- Intelligent Detection: Supports humanoid detection, region intrusion detection, line crossing detection, and video tampering detection, enhancing security monitoring capabilities.
- VQC Technology: Incorporates Video Quality Catalyst (VQC) technology to optimize video clarity and quality, especially in challenging lighting environments.
- Local Storage Support: Supports SD card storage up to 512GB, enabling local video recording without the need for external NVRs.
- Robust Build: Features IP67-rated weatherproof housing, making it suitable for both indoor and outdoor installations.
- Flexible Installation: Can be mounted on walls or ceilings, providing versatility in placement.
- Support Humanoid Detection
- Built-in Mic and Speaker
- Equipped With unique VQC (Video Quality Catalyst) Technology
- Support SD Card (512GB)
- IP67
Features of JVS-N917-YDL 3.0MP Full-Color IP Camera:
Video:
- Image Sensor: 1/2.9″ CMOS Sensor
- Max Resolution: 2304 × 1296 (3.0MP)
- Effective Pixels: 3.0 Megapixels
- Compression Standard: H.264 / H.265
- Framerate: 25fps
- Bitrate:
- Main Stream: 294Kbps ~ 8192Kbps
- Sub Stream: 58Kbps ~ 2356Kbps
- Minimum Illumination: 0 Lux (with light ON)
Lens:
- Interface Type: M12
- Lens: 4mm Fixed Lens
- Field of View:
- Horizontal: 83.4°
- Vertical: 43.1°
- Diagonal: 99.1°
Smart Functions:
- Humanoid Detection
- Region Intrusion Detection
- Line Crossing Detection
- Video Tampering Detection
- Email and Client Alarm Notifications
Image Functions:
- Auto Gain Control
- Digital 3D Noise Reduction
- DWDR (Digital Wide Dynamic Range)
- Image Adjustments: Saturation, Brightness, Contrast, Sharpness
- Privacy Masking: Up to 8 Areas
- Screen Mirroring and Flipping
- Large Font OSD, OSD Flashing on Alarm, OSD Position Settings
Audio:
- Built-in Microphone and Speaker
- Audio Codec: G.711U (default) / G.711A
VQC Technology:
- Supports Video Quality Catalyst Technology for optimized image clarity in real-time.
Network:
- Ethernet: 10/100Mbps Ethernet
- Streams: Dual Streams
- Network Protocols: HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
- ONVIF: Standard Compliant
- Network Transmission: CloudSEE 2.0
- Browser Compatibility: IE8+, Chrome18+, Firefox5.0+, Safari5.02+
- User Access: Up to 13 Users
- Mobile App: iOS/Android Supported
General:
- Illumination: 3 White LEDs + 3 IR LEDs
- IR Distance: Up to 30 Meters
- Waterproof Level: IP67 Rated
- Power Supply: DC12V or PoE
- Power Consumption: (Typical)
- Working Temperature: –20°C to +60°C
- Working Humidity: 10% ~ 90% RH
- Material: Plastic and Metal
- Color: Black and White
- Installation Method: Wall or Ceiling Mount
Other Recommended:
JVS-N518-ZDL 5MP Full-Color AI IP Camera
| Image Sensor | 1/2.9″ CMOS Sensor |
|---|---|
| Max Resolution | 2304 × 1296 |
| Effective Pixels | 3.0 Megapixels |
| Frame rate | 25fps |
| Bitrate | Main Stream: 294Kbps ~ 8192Kbps Sub Stream: 58Kbps ~ 2356Kbps |
| Lens | 4mm Fixed Lens |
| Field of View | Horizontal: 83.4° Vertical: 43.1° Diagonal: 99.1° |
| Network Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| IR Distance | Up to 30 Meters |
| Material | Plastic and Metal |
| Color | Black and White |
| Installation Method | Wall or Ceiling Mount |
| Operation Temperature | –20°C to +60°C |
Only logged in customers who have purchased this product may leave a review.
Related products
JVS-N417-OCR 4MP Screen Character Recognition Smart Camera
Designed for industries where real-time monitoring of electronic screens is essential ideal for smart factories, laboratories, transportation hubs, and any facility that relies on accurate screen data capture for operations or security. you can buy this CCTV in network equipment market.

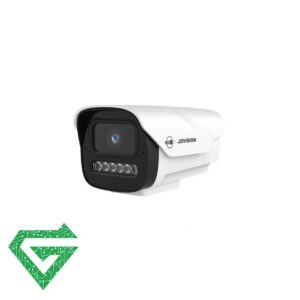

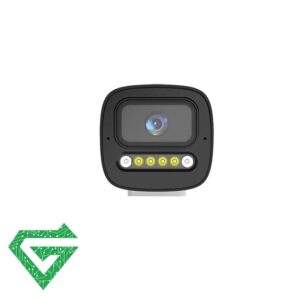

JVS-N517-FDL-AI 5MP Fire Detection AI Full-Color Camera
