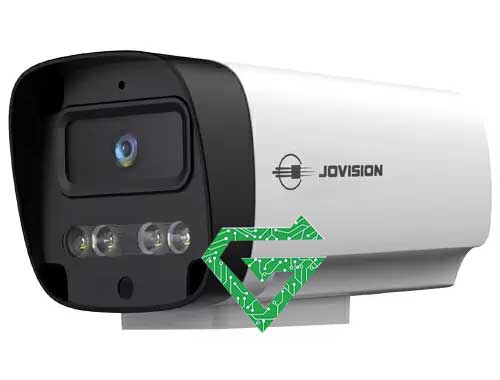

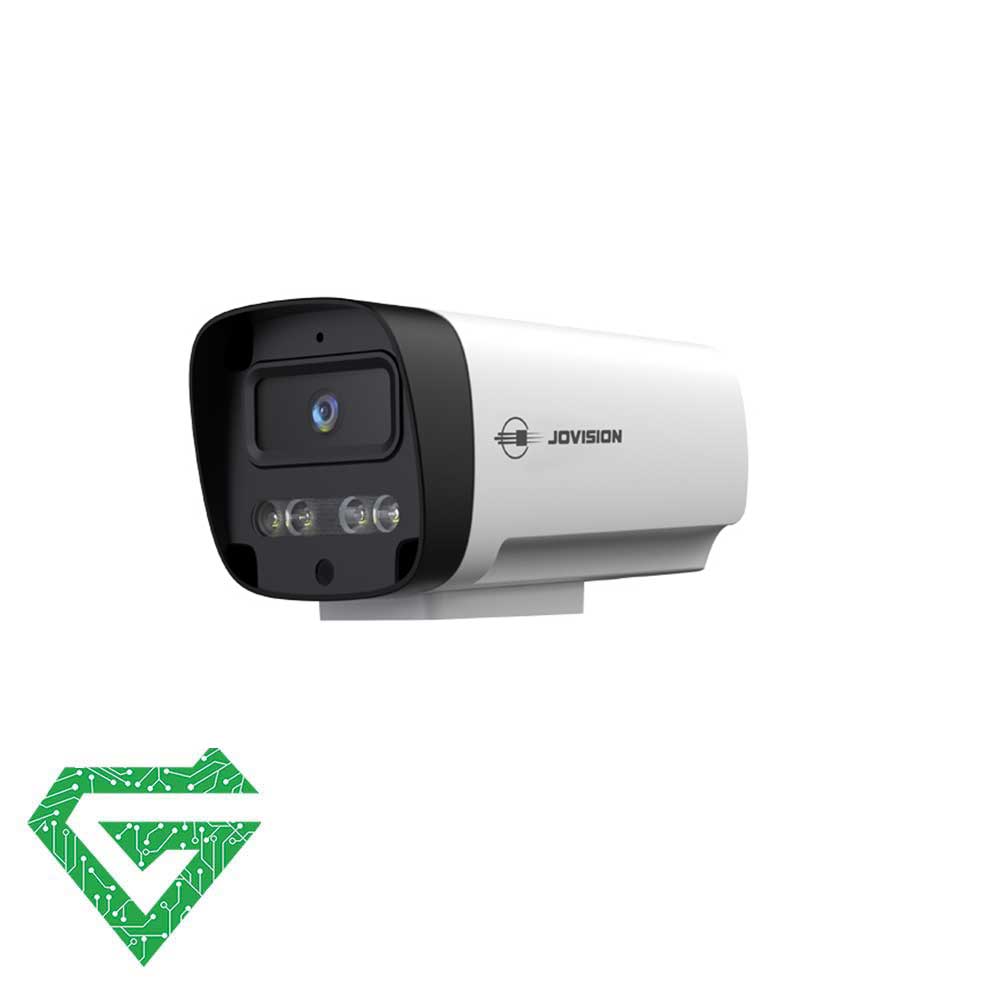

JVS-N917-TDL 3MP Bullet Full-Color Audio IP Camera

JVS-N917-TDL 3MP Bullet Full-Color Audio IP Camera:

The Jovision CCTV JVS-N917-TDL 3MP Bullet IP Camera developed by Jovision Technology Co., Ltd. Designed for both indoor and outdoor surveillance, it offers full-color video recording, integrated audio capabilities, and intelligent detection features. you can buy this IP Camera in network equipment market.

Features of JVS-N917-TDL 3MP Bullet IP Camera:

• Smart Lighting Control: Lights automatically turn on when people approach and off when they leave.
• Double Light Design: Equipped with four warm light LEDs and four infrared LEDs for superior night vision.
• Humanoid Detection: Intelligent detection to distinguish people from other motion events.
• Advanced Intelligent Analysis: Supports Region Intrusion Detection, Line Crossing Detection, Video Tampering Detection, and Defocus Detection.
• VQC Technology: Enhanced video quality with Video Quality Catalyst Technology.
• Built-in Microphone and Speaker: For two-way audio communication.

Specifications of JVS-N917-TDL 3MP Bullet IP Camera:

Video:

• Image Sensor: 1/2.9″ CMOS Sensor
• Max Resolution: 2304 × 1296 (3.0MP)
• Effective Pixels: 3.0 Megapixels
• Compression Standard: H.265 / H.264
• Frame Rate: 25fps
• Bit Rate: 128Kbps ~ 4096Kbps
• Signal-to-Noise Ratio (SNR): 52dB
• Minimum Illumination: 0 Lux (IR ON)

Lens:

• Lens: 3.6mm (M12 Interface)
• Field of View (FOV):

• • Horizontal: 83.8°

  • Vertical: 42.7°

  • Diagonal: 100.1°

Lighting:

• Lights: 4 Warm Light LEDs + 4 IR LEDs
• IR Distance: Up to 50 meters
• Warm Light Distance: Up to 30 meters

Smart Functions:

• Motion Detection: Supports Humanoid Detection
• Intelligent Analysis: Region Intrusion Detection, Line Crossing Detection, Video Tampering Detection, Defocus Detection
• Alarm Notifications: Email Alarm, Client Alarm

Image Functions:

• Exposure Control: Auto
• White Balance: Auto
• Gain Control: Auto
• Image Enhancement: 3D DNR (Digital Noise Reduction)
• Advanced OSD:

• • Large Font Display

  • OSD Flashing on Alarm

  • Separate OSD and Time Position Setting

• Image Settings: Flip, Saturation, Brightness, Contrast, Sharpness
• Day/Night Function: Automatic Switching
• Privacy Mask: Supports up to 8 Areas

Audio:

• Built-in Mic and Speaker: For real-time audio communication

Network:

• Ethernet: 10M / 100M Ethernet (1 × RJ45 Port)
• Streams: Dual Stream
• Protocols Supported: HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
• Standards: ONVIF Standard, CloudSEE 2.0, GB28181
• Browser Support: IE8+, Chrome18+, Firefox5.0+, Safari5.02+
• User Access: Supports up to 13 Users
• Mobile App: Compatible with iOS and Android Devices

General:

• Power Supply: DC12V or PoE
• Power Consumption: <3W (Day); <6W (Night)
• Working Temperature: -20°C to 60°C
• Working Humidity: 10% ~ 90% RH
• Material: Black and White / Plastic
• Dimensions: 95mm × 95mm × 175mm (W×H×D)
• Weight: 280g
• Waterproof Rating: IP67

Application:

Perfect for residential, commercial, and light industrial environments needing smart lighting, full-color video capture, and AI-enhanced security features even at night.
