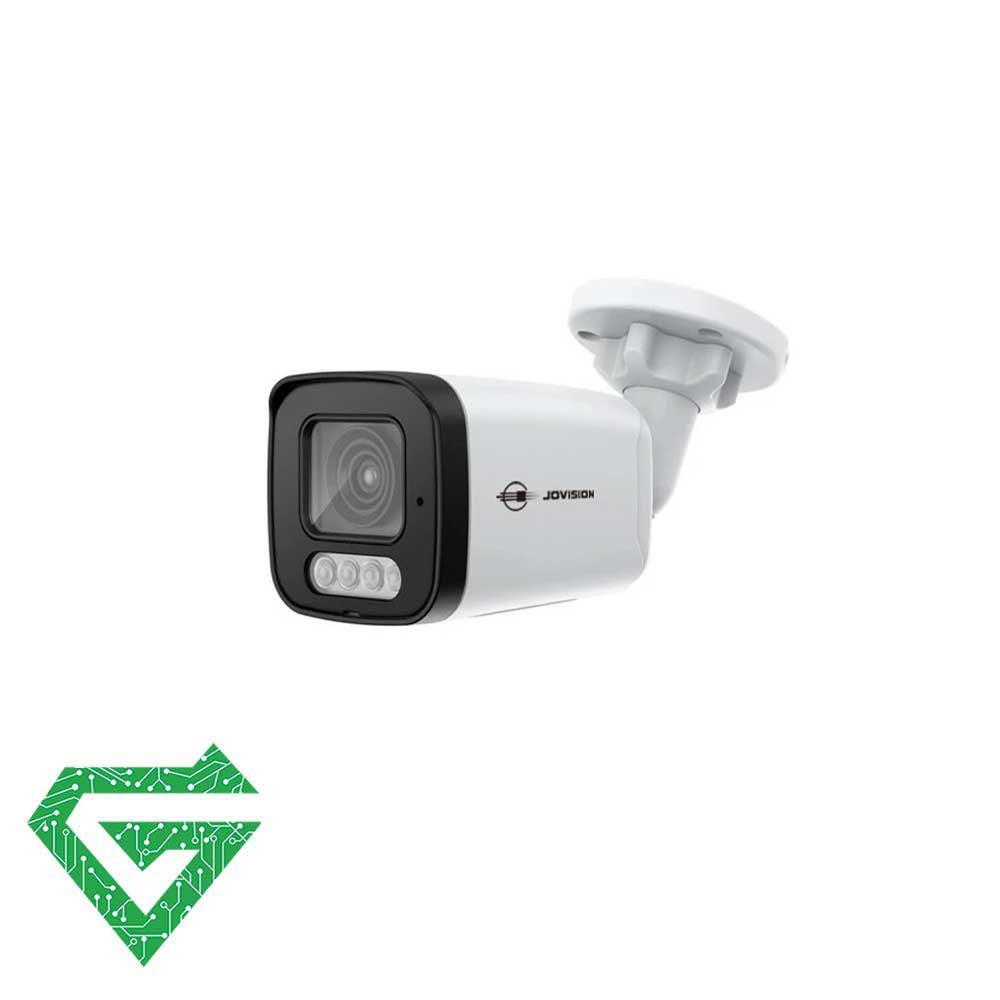

JVS-N515-EDL 5MP Full-Color PoE Network Camera

JVS-N515-EDL 5MP Full-Color PoE Network Camera:

Features of JVS-N515-EDL 5MP Full-Color PoE Network Camera:

• 5.0 Megapixel Ultra HD Resolution (2880 × 1620)
• Full-Color 24/7 Imaging with Adaptive White and IR LEDs
• Smart Motion Detection (Humanoid Detection)
• Intelligent Region Intrusion and Line Crossing Detection
• Built-in Microphone for Real-Time Audio Capture
• IEEE802.3af PoE Support for Easy Installation
• IP66 Waterproof Rating for Outdoor Durability

Specifications of JVS-N515-EDL 5MP Full-Color PoE Network Camera:

Video:

• Image Sensor: 1/2.9″ CMOS Sensor
• Max Resolution: 2880 × 1620
• Effective Pixels: 5.0 Megapixels
• Compression Standard: H.264 / H.265
• Framerate: 25fps
• Bitrate:
  • Main Stream: 256Kbps ~ 8192Kbps
  • Sub Stream: 68Kbps ~ 1024Kbps
• Signal-to-Noise Ratio (SNR): 39dB
• Min. Illumination: 0 Lux (Light ON)

Lens:

• Interface Type: M12
• Lens: 3.6mm Fixed
• Field of View (FOV):
  • Horizontal: 83.8°
  • Vertical: 42.7°
  • Diagonal: 100.1°

Functionality:

• Audio Codec: G.711U / G.711A (Default)
• Exposure Control: Auto
• White Balance: Auto
• Gain Control: Auto
• 3D Digital Noise Reduction: Supported
• OSD Settings: Large Font Display, Flashing Alarm OSD, OSD Positioning
• SNTP: Supported
• Schedule Reboot: Supported
• Smart Defog: Supported
• Motion Detection: Supported (Humanoid Detection)
• Image Settings: Adjustable Saturation, Brightness, Contrast, Sharpness
• Image Style: Standard, Soft, Transparent
• Day/Night Modes: Auto, Always Black & White, Always Color, Scheduled Color
• Privacy Mask: Supports up to 8 Areas
• Intelligent Analysis: Region Intrusion Detection, Line Crossing Detection
• Electronic Screen Setting: Supports Max/Min Exposure Time Settings
• Night Vision Optimization: Supported
• DWDR (Digital Wide Dynamic Range): Supported
• Screen Settings: Mirror and Flip Image
• IP Adaptation: Auto IP (Optional)
• Alarm Method: Email Alarm, Client Alarm
• Remote Operation: System, Audio/Video, Image, Alarm, Network Management

Audio/Storage:

• Audio Function: Built-in Microphone
• SD Card Slot: Not Supported

Network:

• Ethernet: 10/100Mbps
• Streams: Dual Stream
• Network Protocols: HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
• ONVIF: Standard ONVIF Compliance
• Network Transmission: CloudSEE 2.0
• Browser Compatibility: IE8+, Chrome18+, Firefox5+, Safari5.02+
• Users: Supports up to 13 Simultaneous Users
• Mobile App: Compatible with iOS and Android

General:

• Lights: 4 White LEDs + 4 IR LEDs
• IR Distance: Up to 40 meters
• Waterproof Rating: IP66
• Power Supply: DC12V or PoE (IEEE802.3af)
• Power Consumption: <3W (Daytime); <6W (Nighttime)
• Operating Temperature: -20°C ~ +60°C
• Operating Humidity: 10% ~ 90% RH (Non-Condensing)
• Color/Material: Black and White / Plastic + Metal
• Dimensions: 67 × 68 × 175 mm (W × H × D)
• Weight: 311g
• Installation: Wall Mount / Ceiling Mount
