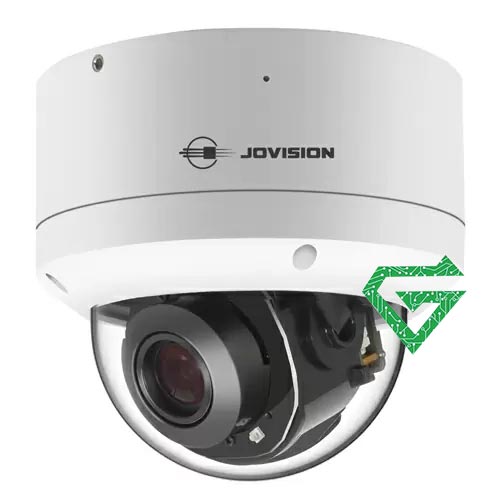

JVS-N433-Z5 4.0MP Vandal-proof PTZ Dome Camera:
JVS-N433-Z5 4.0MP Vandal-proof PTZ Dome Camera is a robust 4 MP vandal‑proof PTZ dome camera from Jovision and has Motorized varifocal lens, 2.7–13.5 mm (~5× optical zoom). This Jovision CCTV has Dual IR LEDs, effective up to 70 m in total darkness. You can buy this IP Camera in network equipment market.
Features of JVS-N433-Z5 4.0MP Vandal-proof PTZ Dome Camera:
- 4MP Ultra-clear Resolution: 2560 × 1440 @ 25fps for detailed surveillance footage.
- Vandal-proof Metal Housing: Rugged and durable design for high-risk areas.
- Power over Ethernet (PoE IEEE 802.3af): Simplified cabling for easy installation.
- Powerful Night Vision: Dual IR LEDs with up to 70 meters infrared range.
- Flexible Viewing Angles: 360° Pan and 90° Tilt capabilities.
- CloudSEE App Support: Remote monitoring via iOS and Android.
- ONVIF 2.4 Compliance: Compatible with most third-party NVRs.
Specifications of JVS-N433-Z5 4.0MP Vandal-proof PTZ Dome Camera:
Video
- Image Sensor: 1/2.9” CMOS
- Max Resolution: 2560 × 1440 (4.0MP)
- Effective Pixels: 4 Megapixels
- Compression Standard: H.265
- Max Frame Rate: 4MP @ 25fps
- SNR: 39dB
- Bitrate: 128Kbps – 6Mbps
- Minimum Illumination: 0 Lux (IR ON)
Lens
- Lens: 2.7mm – 13.5mm Electric Zoom
- IR LEDs: 2x High-power IR LEDs
- IR Distance: Up to 70 meters
Functions
- Motion Detection: Supported
- Email Alerts: Supported
- Day & Night Switching: Supported (IR Cut Filter)
- Recording: Supported (NVR, Windows PC, Smartphone)
- DHCP: Supported
- Pan/Tilt: Pan 360°, Tilt 90°
- Audio Input: Built-in Microphone
- Audio Codec: G.711A / G.711U
- SD Card Slot: Supported, up to 256GB
- Privacy Masking: Up to 8 areas
- Exposure Control: Supported
- Image Adjustment: Supported (Brightness, Contrast, Saturation, etc.)
- White Balance: Automatic
- Image Rotation: Mirror and Flip
Network
- Ethernet: 10M/100M RJ45 Port
- Protocols: HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
- Streams: Dual Streams
- Wi-Fi: Not Supported
- LAN Connection: Supported
- ONVIF: ONVIF 2.4 Standard
- Users: Supports up to 13 users simultaneously
- Browser Compatibility: IE, Chrome, Edge
- Mobile App: Supports iOS / Android (CloudSEE App)
General
- Dimensions: 110 × 110mm
- Weight: 640g
- Material: Full Metal Housing
- Working Temperature: -20°C to 60°C
- Humidity Range: 10% – 90% RH
- Power Supply: DC12V/1.5A or PoE (IEEE 802.3af)
- Power Consumption: ≤5W (Daytime), ≤9W (Nighttime)
- Waterproof Rating: IP66
Other Recommended:
JVS-N518-ZDL 5MP Full-Color AI IP Camera
JVS-N917-TDL 3MP Bullet Full-Color Audio IP Camera
JVS-N917-YDL 3.0MP Full-Color IP Camera
JVS-N915-BDL 3MP Full-Color PoE Network Camera
| Image Sensor |
1/2.9” CMOS |
|---|---|
| Max Resolution |
2560 × 1440 |
| Effective Pixels |
4 Megapixels |
| Frame Rate |
4MP @ 25fps |
| Bitrate |
128Kbps – 6Mbps |
| Lens |
2.7mm – 13.5mm Electric Zoom |
| IR LEDs |
2x High-power IR LEDs |
| IR Distance |
Up to 70 meters |
| Motion Detection |
Supported |
| SD Card Slot |
Supported, up to 256GB |
| White Balance |
Automatic |
| Network Protocols |
HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| Users |
Supports up to 13 users simultaneously |
| Dimensions |
110 × 110mm |
| Weight |
640g |
| Material |
Full Metal Housing |
| Working Temperature |
-20°C to 60°C |
| Power Supply |
DC12V/1.5A or PoE (IEEE 802.3af) |
| Power Consumption |
≤5W (Daytime), ≤9W (Nighttime) |
| Waterproof Rating |
IP66 |
