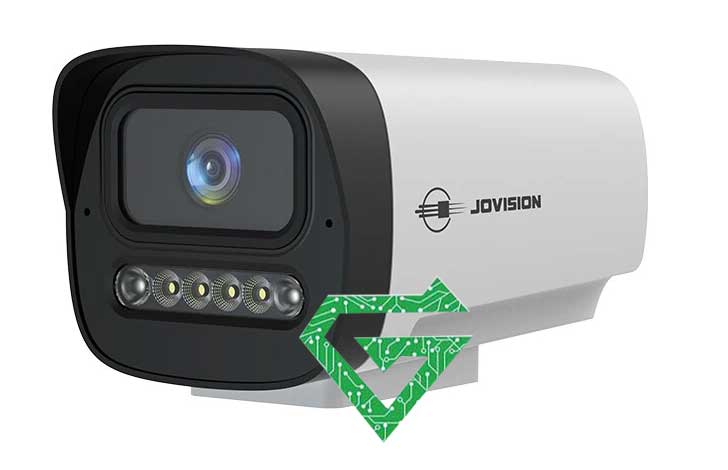

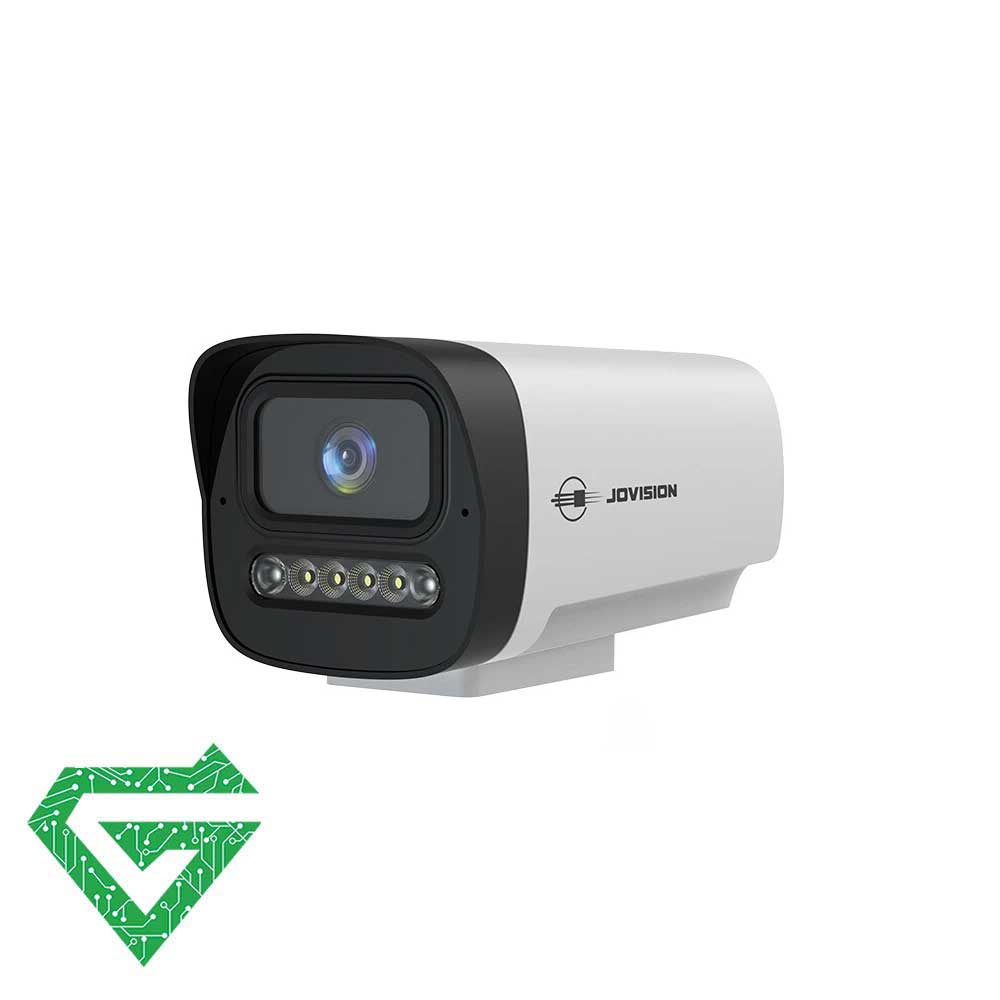

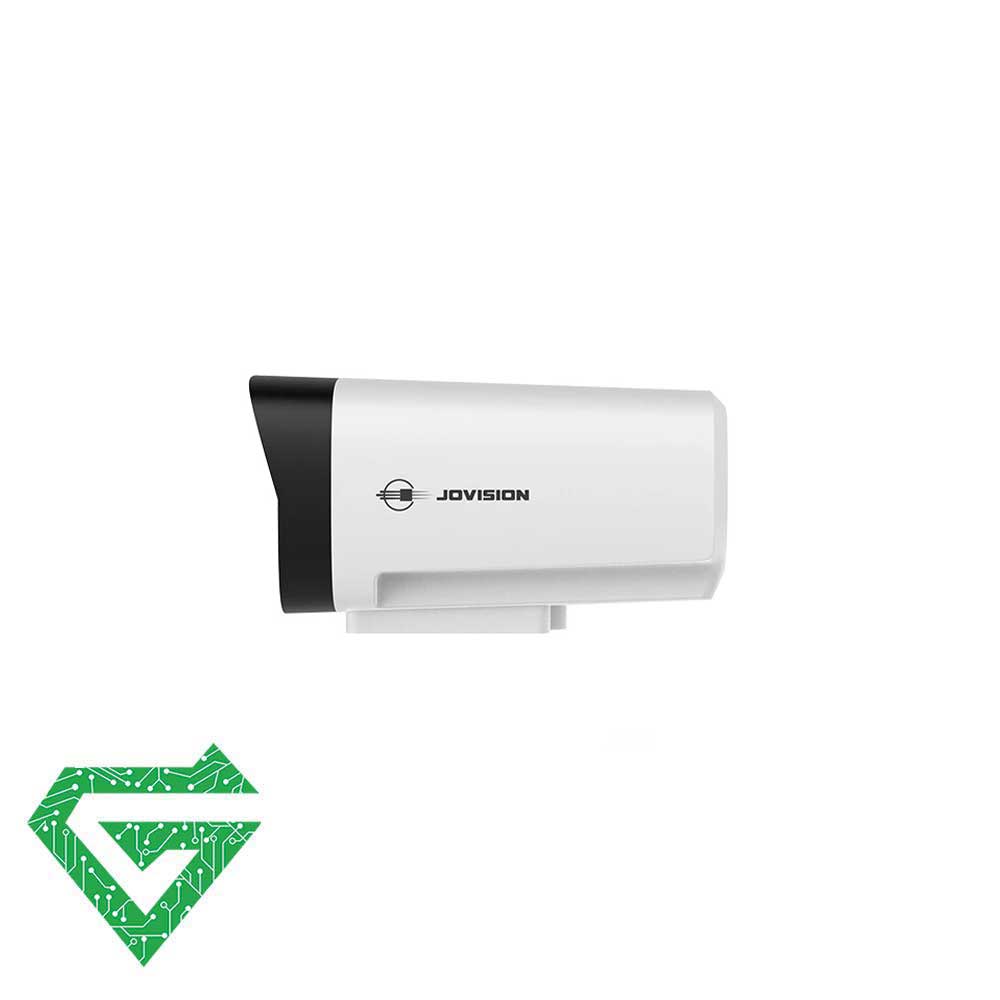

JVS-N817-UDL 8.0MP Full-Color AI Network Camera:
The Jovision CCTV JVS-N817-UDL is an advanced 8.0MP (4K Ultra HD) Full-Color AI Network Camera designed by Jovision for high-performance surveillance in various environments. This camera equipped with 6 white LEDs and 6 IR LEDs, it provides up to 60 meters of full-color visibility in complete darkness and Incorporates AI-ISP and VQC (Video Quality Catalyst) technologies for enhanced image clarity and performance. you can buy this IP Camera in network equipment market.
Features of JVS-N817-UDL 8.0MP Full-Color AI Network Camera:
- Instrument Panels & Meters Monitoring with enhanced clarity
- Smart Dual Illumination for optimal full-color night vision
- IP67 Ingress Protection for robust outdoor and indoor performance
- 2.8–12mm Motorized Varifocal Lens for flexible installation and precise focus
- SOT+IA (Specific Optical Technology + Intelligence Algorithm) for superior image analysis
- Built-in Support for VQC (Video Quality Catalyst) and SAFE Function
Specifications of JVS-N817-UDL 8.0MP Full-Color AI:
Video
- Image Sensor: 1/2.82″ CMOS Sensor
- Max Resolution: 3840 × 2160 (4K)
- Effective Pixels: 8.0 Megapixels
- Compression Standards: H.264 / H.265
- Framerate: 25fps
- Bitrate:
- Main Stream: 256Kbps ~ 10Mbps
- Sub Stream: 68Kbps ~ 3072Kbps
- Signal-to-Noise Ratio (SNR): 49.3dB
- Minimum Illumination: 0 Lux (with lights ON)
- Interface Type: M12
Lens
- Lens Type: 2.8–12mm Motorized Zoom
- Field of View (FOV):
- Horizontal: 87.8°
- Vertical: 43.4°
- Diagonal: 105°
Functionality
- Audio Codec: G.711U / G.711A (default)
- Exposure Control: Auto, HLC, BLC
- White Balance / Gain Control: Auto
- OSD Settings: Large font, alarm flashing, position adjustable
- SNTP: Supported
- Schedule Reboot: Supported
- Smart Defog: Supported
- Motion Detection: Supports Humanoid & Vehicle Detection
- Image Adjustments: Saturation, Brightness, Contrast, Sharpness
- Image Styles: Standard, Soft, Transparent
- Day/Night Modes: Auto, Always Black & White, Always Color, Scheduled Color
- Privacy Mask: Up to 8 areas
- Night Vision Optimization: Supported
- Wide Dynamic Range (WDR): Supported
- Screen Settings: Mirroring, Flipping
- IP Adaptation: Supported (Optional)
- Alarm Methods: Email Alarm, Client Alarm
- Remote Management: System, Audio/Video, Image, Alarm, Network
- VQC Technology: Supported
- SAFE Function: Supported
Network
- Ethernet: 10/100Mbps Ethernet
- Streams: Dual Stream Support
- Network Protocols: HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
- ONVIF: Standard ONVIF supported
- Network Transmission: CloudSEE 2.0
- Browser Compatibility: IE8+, Chrome18+, Firefox5.0+, Safari5.02+
- User Capacity: Up to 13 Users
- Mobile App: iOS/Android Compatible
General
- Illumination:
- 6 White LEDs + 6 IR LEDs
- IR Distance: Up to 60 meters
- White LED Distance: Up to 50 meters
- Waterproof Rating: IP67
- Power Supply: DC12V or PoE (IEEE802.3af)
- Power Consumption: <12W
- Working Temperature: -30°C ~ +60°C
- Working Humidity: 5% ~ 93% RH
- Material/Color: Black & White / Metal + Plastic
- Dimensions: 94.5 × 94 × 174.5 mm
- Weight: 450g
- Installation: Ceiling Mount or Wall Mount
Other Recommended:
JVS-N518-ZDL 5MP Full-Color AI IP Camera
JVS-N917-YDL 3.0MP Full-Color IP Camera
| Image Sensor |
1/2.82" CMOS Sensor |
|---|---|
| Max Resolution |
3840 × 2160 (4K) |
| Effective Pixels |
8.0 Megapixels |
| Frame rate |
25fps |
| Bit rate |
Main Stream: 256Kbps ~ 10Mbps / Sub Stream: 68Kbps ~ 3072Kbps |
| Lens Type |
2.8–12mm Motorized Zoom |
| Field of View (FOV) |
Horizontal: 87.8° / Vertical: 43.4° / Diagonal: 105° |
| Motion Detection |
Supports Humanoid & Vehicle Detection |
| Network Protocols |
HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| User Capacity |
Up to 13 Users |
| Waterproof Rating |
IP67 |
| Power Supply |
DC12V or PoE (IEEE802.3af) |
| Power Consumption |
<12W |
| Working Temperature |
-30°C ~ +60°C |
| Material/Color |
Black & White / Metal + Plastic |
| Dimensions |
94.5 × 94 × 174.5 mm |
| Weight |
450g |
| Installation |
Ceiling Mount or Wall Mount |
Only logged in customers who have purchased this product may leave a review.
Related products

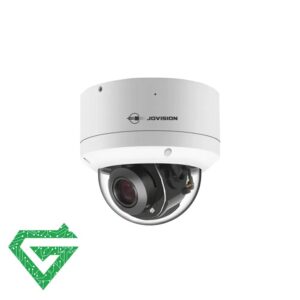

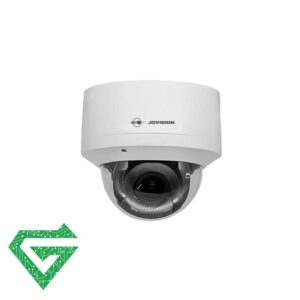

JVS-N433-Z5 4.0MP Vandal-proof PTZ Dome Camera
