JVS-N417-OCR 4MP Screen Character Recognition Smart Camera

JVS-N417-OCR 4MP Screen Character Recognition:

The Jovision CCTV JVS-N417-OCR 4MP Screen Character Recognition Smart Camera from Jovision, designed specifically for optical character recognition (OCR) tasks. It’s ideal for applications requiring accurate text extraction from screens, meters, or digital displays. Designed for industries where real-time monitoring of electronic screens is essential ideal for smart factories, laboratories, transportation hubs, and any facility that relies on accurate screen data capture for operations or security. you can buy this IP Camera in network equipment market.

Features of JVS-N417-OCR 4MP Screen Character Recognition:

• Unique Optical Design: Specialized for clear viewing of electronic displays, instruments, and other digital devices.
• Motorized Varifocal Lens (3.3–10.5mm): Easy remote zoom and focus adjustments.
• Character Recognition and Extraction: Detects and extracts numbers, letters, capital letters, and numeric symbols from screens with up to 99% recognition accuracy.
• Equipped with SOT+IA Technology: Combines Specific Optical Technology and Intelligent Algorithms for superior detection performance.
• Built-in Mic and Speaker: Enables real-time audio communication.
• IP67 Waterproof Rating: Built tough for diverse, challenging environments.
• Multi-Terminal Tail Lines: Supports linkage to external alarm devices for enhanced warning systems.

Uses of JVS-N417-OCR 4MP Screen Character Recognition Smart Camera:

• Industrial Monitoring: Reading and recording data from machinery displays or control panels.
• Utility Management: Automated reading of electricity, water, or gas meters.
• Transportation Systems: Capturing information from vehicle dashboards or ticketing machines.
• Retail and Banking: Monitoring point-of-sale systems or ATM screens for transaction verification.

Specifications of JVS-N417-OCR 4MP Screen Character Recognition:

Video:

• Image Sensor: 1/3” CMOS Sensor
• Max Resolution: 2560 × 1440 (4.0MP)
• Effective Pixels: 4 Megapixels
• Compression Standard: H.264 / H.265 (Default)
• Framerate: 25fps
• Bitrate:
  • Main Stream: 256Kbps ~ 8192Kbps
  • Sub Stream: 68Kbps ~ 1024Kbps
• SNR (Signal-to-Noise Ratio): 45dB
• Min. Illumination: 0 Lux (with IR ON)

Lens:

• Lens Type: Motorized Zoom
• Focal Length: 3.3mm–10.5mm
• Field of View:
  • Horizontal: 94.5° (W) – 29.4° (T)
  • Vertical: 50.5° (W) – 16.5° (T)
  • Diagonal: 111.4° (W) – 33.5° (T)

Character Recognition Functions:

• Character Extraction: Numbers, Letters, Capital Letters, Numeric Symbols
• Character Extraction Alarm: Instant notification when characters are detected
• OSD Overlay Display Settings:
  • Font Color: Yellow (Default), White, Green, Blue
  • Font Size: Adjustable (16–48)
  • OSD Flashing on Alarm
• Detection Areas: Up to 4 customizable zones

Intelligent Features:

• Exposure Control: Auto, HLC (Highlight Compensation), BLC (Backlight Compensation)
• Smart Defog: Supported
• Motion Detection: Human, Vehicle, Non-motorized Vehicle
• Image Settings: Saturation, Brightness, Contrast, Sharpness adjustable
• Image Styles: Standard, Soft, Transparent
• Day/Night Modes: Auto, Always B/W, Always Color, Scheduled Color
• Privacy Masking: Up to 4 Areas
• Wide Dynamic Range (WDR): Supported
• Night Vision Optimization: Enhanced low-light clarity
• Alarm Linkage:
  • Email, Client, FTP, HTTP alarms
  • Local recording to SD Card on event
• Arming Schedule: Full-time or customized time period arming
• Screen Settings: Mirroring and Flipping

Audio:

• Built-in Mic and Speaker
• Audio Codec: G.711U / G.711A (Default)

Network:

• Ethernet: 10/100Mbps RJ45
• Stream: 16x Streams
• Network Protocols: HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS
• ONVIF: Standard
• Network Transmission: CloudSEE 2.0
• Browser Compatibility: IE8+, Chrome18+, Firefox5.0+, Safari5.02+
• User Access: Up to 13 users simultaneously
• Mobile App: iOS and Android supported

General:

• Lights: 6 White LEDs + 6 IR LEDs
• IR Distance: Up to 10 meters
• Material: Aluminum Alloy + PC+ABS (Black and White)
• Waterproof Level: IP67
• Power Supply: DC12V/1A or PoE(IEEE802.3af)
• Power Consumption:
  • <3W (Day)
  • <6W (Night)
• Working Temperature: -20°C ~ +60°C
• Working Humidity: ≤93% RH
• Dimensions: 104mm × 98mm × 184mm (W × H × D)
• Weight: 280g
• Installation Method: Wall or Ceiling Mount

Other Recommended:

JVS-N518-ZDL 5MP Full-Color AI IP Camera

JVS-N917-YDL 3.0MP Full-Color IP Camera

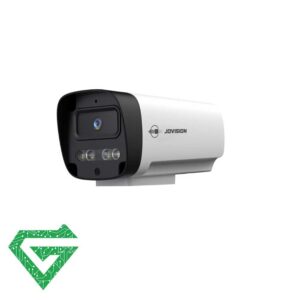

JVS-N917-TDL 3MP Bullet Full-Color Audio IP Camera
